- 2:1 shrink ratio
- Long term resistance to diesel, hydraulic fluids and chemicals
- Semi-rigid
- Flame retardant
- High abrasion and cut resistance
- Meets 23053/18
- Continuous operating temperature:-55℃-175℃
- Shrink temperature:175℃
THIN WALL PVDF Heat Shrink Tubing
Code: LIDAVI RSFR-VDF175
Features
Applications

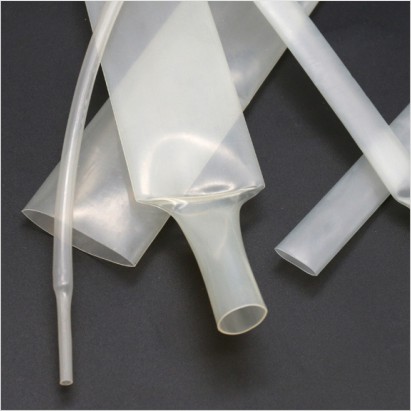

THIN WALL PVDF Heat Shrink Tubing Transparent, thin wall PVDF (polyvinylidene fluoride) heat shrink tubing ideal for electronic, automotive and military applications requiring protection and see-through inspection in aggressive environments.
Technical Data
| Property | Test method | Typical Performance |
| Tensile strength(MPa) | ASTM D 2671 | ≥30 |
| Elongation(%) | ASTM D 2671 | ≥150 |
| Tensile | 250℃X168hr | ≥100 |
| Cold Bend | No cracking | ≥220 |
| Flammability | ASTM D 2671 | VW-1 |
| Volume resistivity(Ω.cm) | IEC 60093 | ≥1×1014 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
|
Size (mm) |
Expanded ID (mm) |
Recovered |
Packing (m/reel) |
Shape |
|
|
ID (mm) |
Wall Thickness (mm) |
||||
|
1.2 |
1.2 |
0.6 |
0.25 ± 0.05 |
200 |
Round |
|
1.6 |
1.6 |
0.8 |
0.25 ± 0.05 |
200 |
Round |
|
2.4 |
2.4 |
1.2 |
0.25 ± 0.05 |
200 |
Round |
|
3.2 |
3.2 |
1.6 |
0.25 ± 0.05 |
200 |
Round |
|
4.8 |
4.8 |
2.4 |
0.30 ± 0.05 |
100 |
Round |
|
6.4 |
6.4 |
3.2 |
0.30 ± 0.05 |
100 |
Round |
|
9.5 |
9.5 |
4.8 |
0.30 ± 0.05 |
50 |
Round |
|
12.7 |
12.7 |
6.4 |
0.32 ± 0.05 |
50 |
Round |
|
19.1 |
19.1 |
9.5 |
0.42 ± 0.05 |
50 |
Round |
|
25.4 |
25.4 |
12.7 |
0.50 ± 0.05 |
50 |
Round |
|
38.1 |
38.1 |
19.1 |
0.50 ± 0.05 |
50 |
Round |
