Fiberglass material impregnated with polytetrafluoroethylene dispersion then sintered Single side coated with silicone adhesive, which exhibits excellent heat resistance and mechanical strength

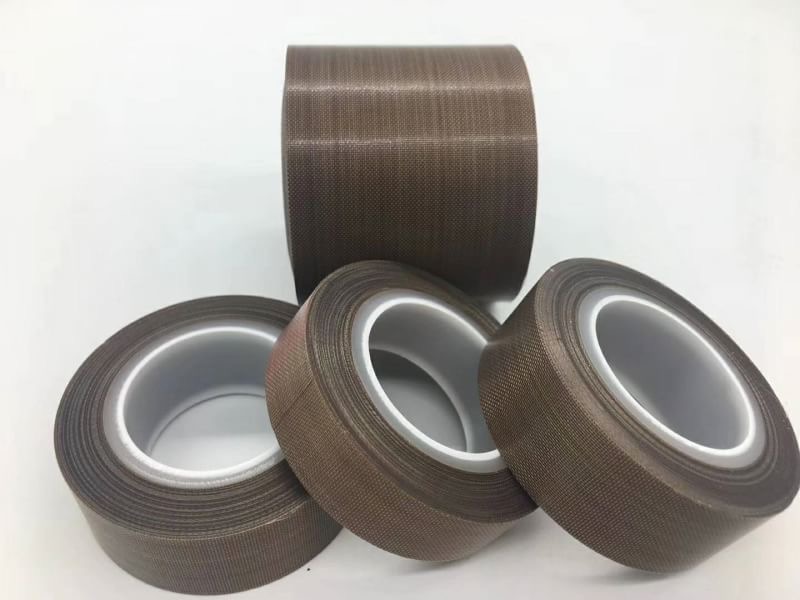

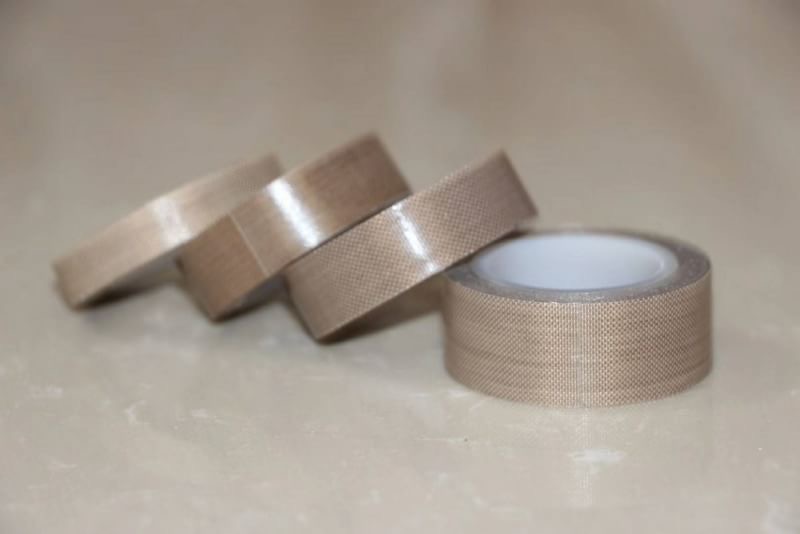

Teflon Fiberglass Fabric Adhesive Tape
Code: 216AD
Features
Applications
Fiberglass fabric coated with PTFE has various good capability and it is widely used in aircraft industry paper manufacturing, food, printing and painting, costume, medical chemical, glass manufacturing, electric and electronic, insulation and building, sharpener slice, machinery
- Heat resistant insulation
- Heat resistant lubricants for heat sealing
- Surface coating of sizing rolls for drying and resin treatment
Technical Data
| Content | Unit | Standard value |
| Total thickness | mm | 0.18 |
| Backing weight | Gr/m2 | 270 |
| Tensile strength | N/100mm | 2750 |
| Adhesion to steel | N/100mm | 48 |
| Temperature resistance | oC | -70 ~ 260 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
| Content | Unit | Standard value |
| Width | mm | 13, 19, 25, 38, other cut-size |
| Length | m | 10 |
| Color | - | Brown |
| Core ID | mm | 32, 38 |
