Code: Silicone Rubber Fiberglass Fabric Series

Features

Fiberglass fabric coated one or both sides with silicone rubber.

Temperature resistance, it can continuously work under -70℃ to 280℃
Weatherability: resistance to ozone, oxygen, sunlight and aging
Good chemical resistance
Superior abrasion resistance
Excellent release properties
Good electric insulation, dielectric constant 3～3.2, break down voltage between 20～50KV/mm

Applications

Electric insulation: silicone rubber coated fiberglass feature high grade of electric insulation and bear a load of high voltage
Non-metalic compensator help to avoid damage caused by heat expansion and cold contraction. This mambrane material specially fit for use in industry of petroleum, chemical engineering, cement, iron, steel and energy source due to its special features of temperature resistance, anti-corrosion, anti-aging, good elasticity and toughness
It is good for use of anti-corrosion conveyor belts

Technical Data

Item	Thickness (mm)	Breakng Strength (N/50mm)	Bursting Strength MPa	Combustible	Width (mm)
G3013	0.13	1500/1200	2.0	≤25%	0~1500
G3025	0.25	1800/1500	2.1	≤25%	0~1500
G3040	0.4	2000/1600	2.2	≤25%	0~1500
G3050	0.5	2200/1800	2.3	≤25%	0~2000
G3060	0.6	2400/2200	2.4	≤25%	0~3000
G3070	0.7	2500/2300	2.4	≤25%	0~3000
G3080	0.8	2600/2400	2.5	≤25%	0~3000
G3090	0.9	2800/2600	2.5	≤25%	0~3000
G3100	1.0	3000/2800	2.6	≤25%	0~3000
G3120	1.2	3400/3000	2.5	≤25%	0~3000
G3150	1.5	3700/3300	2.3	≤25%	0~3000
G3200	2.0	4200/3800	2.2	≤25%	0~3000

Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy

Other properties

Content	Unit	Standard value
Width	mm	1000, 1300, 2800
Length	m	50
Color	-	Red, White,Grey
Core ID	mm	76

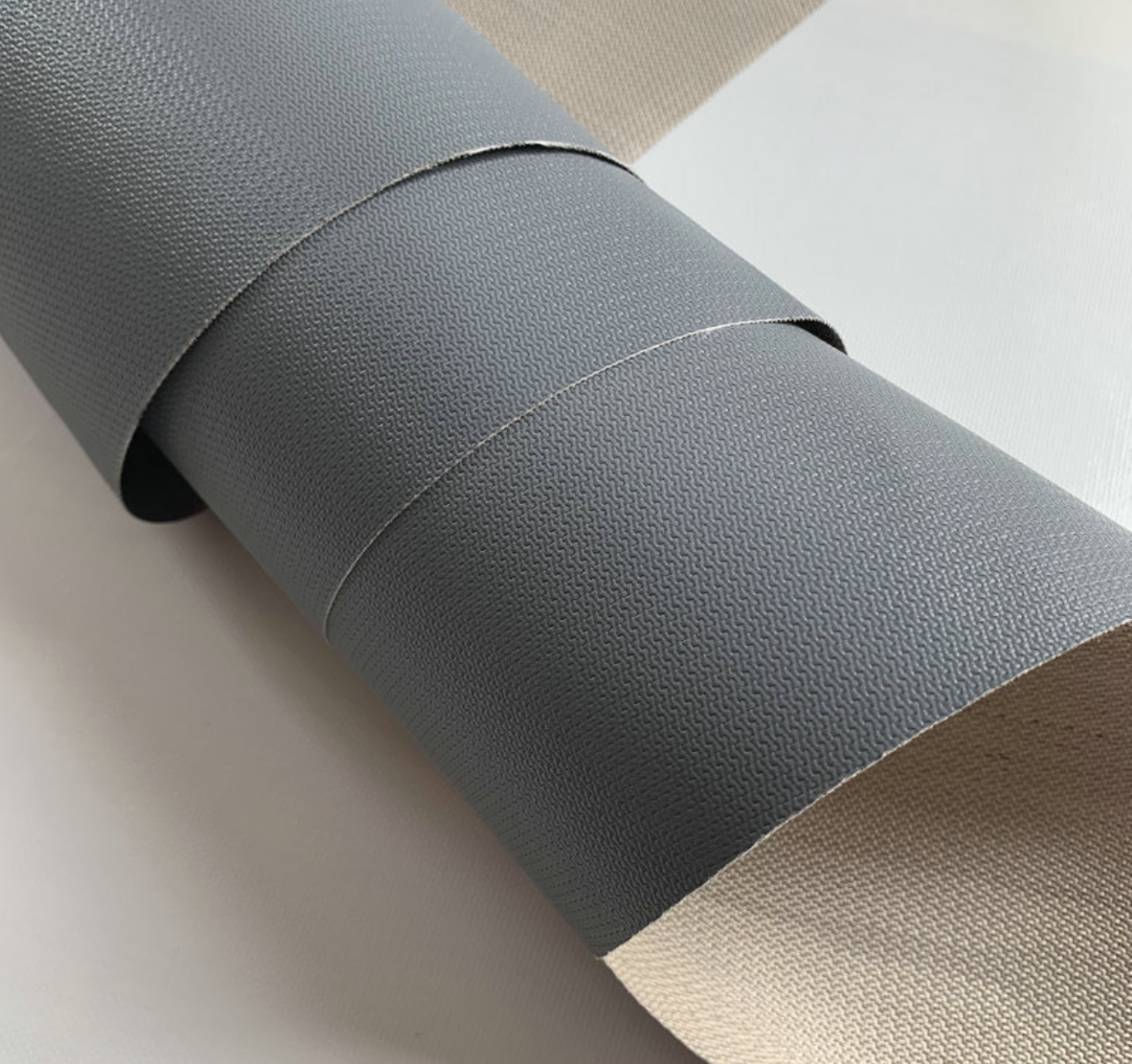

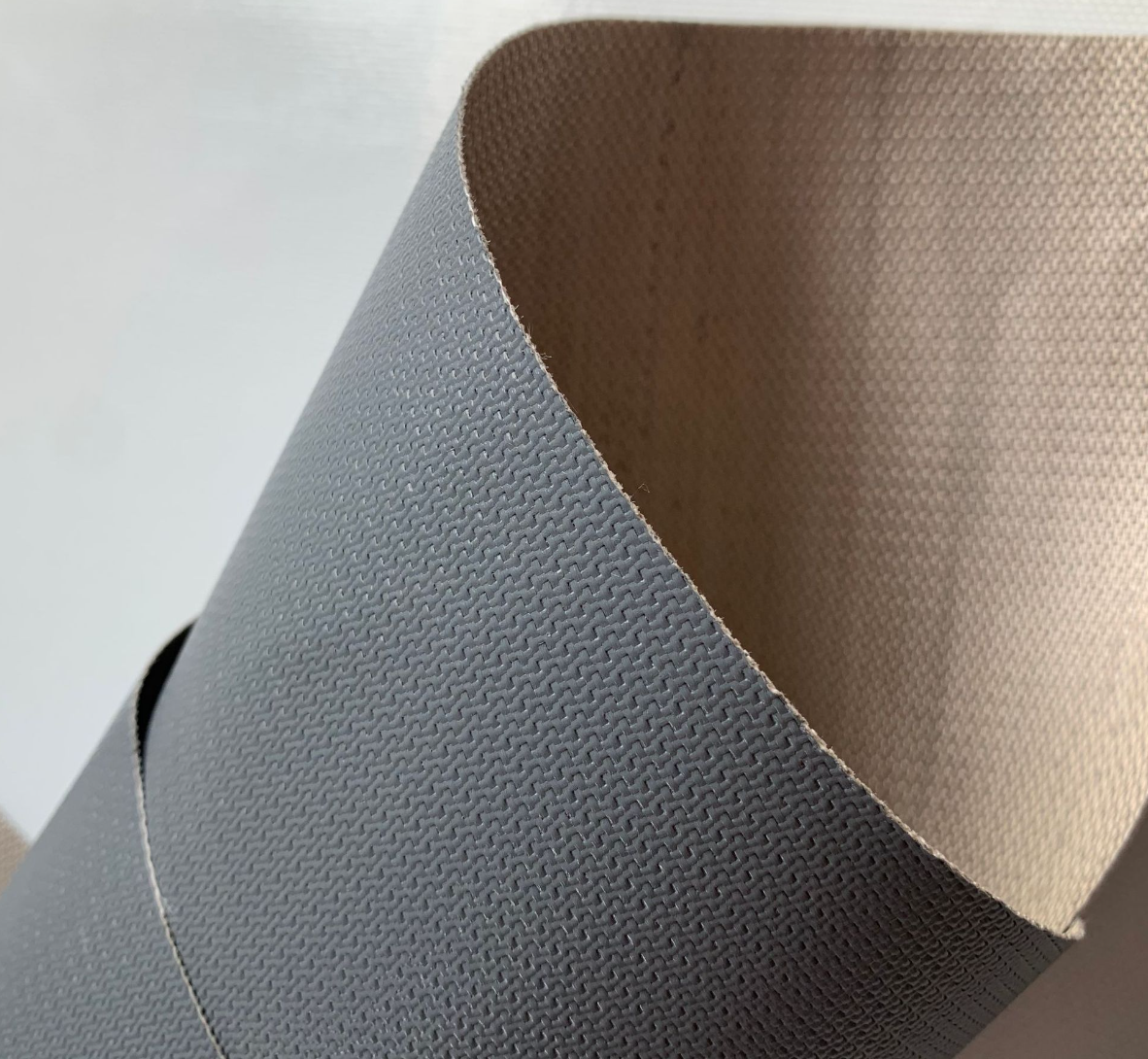

Silicone Rubber Coated Fiberglass Fabric
