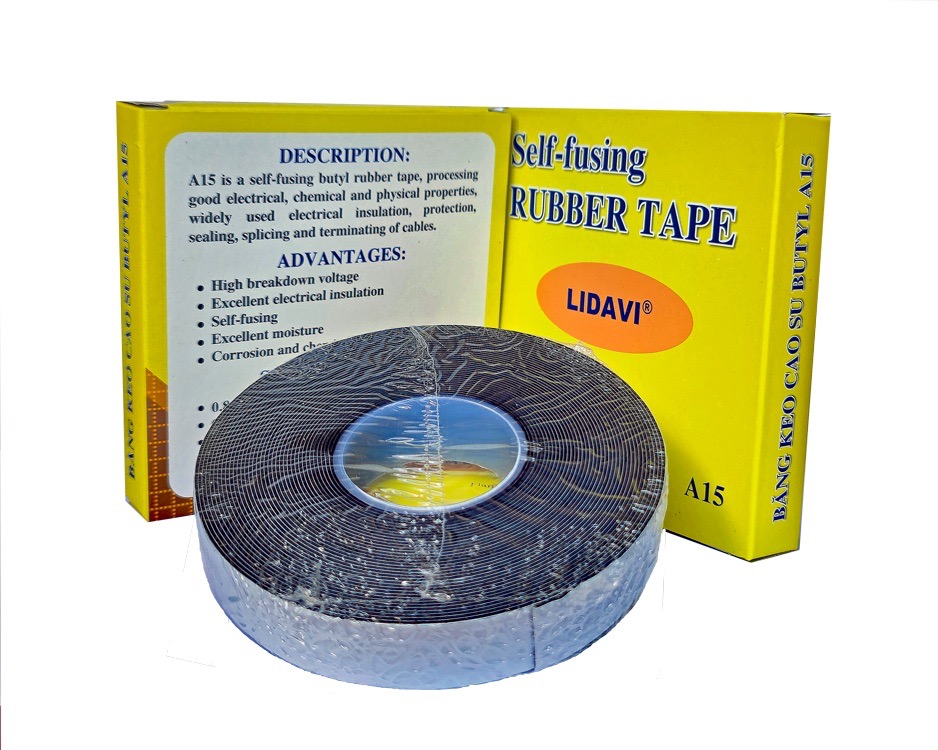

This ethylene propylene rubber based high voltage processing excellent electrical, chemical and physical properties. The excellent stretch of tape provide conformability to the most complex shape and contour. tape is ideal for:

Insulating and jacketing of splice on power cable from 600V up to 22KV
Building stress cones and jacketing of terminations on power cable from 600V up to 22KV
Insulating and protect busbar and joints

Technical Data

Content	Unit	Standard value
Backing material	-	Ethylene Propylene Rubber
Thickness	mm	0.8
Elongation	%	700
Ozone resistance	-	PASS
UV resistance	-	PASS
Water absorption	%	0.31
Continuous operating temperature	^oC	90
Overload operating temperature	^oC	130
Dielectric strength	KV/mm	22

Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy

Other properties

Thickness

Width

Length

Color

ID Core

0.8

19, 25, 38, 51

5yds, 10yds

Black

32,38
