- 2:1 shrink ratio
- Flame retardant
- Good resistance to common fluids and solvents
- UL approved
- Operating temperature: -55℃ to 150℃
- Fully shrink temperature: ≥135℃
-
RoHS compliant
.jpg)

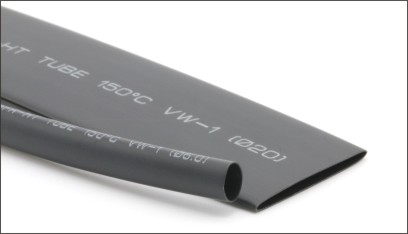

RSFR Tubes
Code: RSFR-HT
Features
Applications
150℃ Flame retardant heat shrink tubing
Technical Data
| Property | Test Method | Typical Performance |
| Tensile strength（MPa） | ASTM D 2671 | ≥10.4 |
| Ultimate elongation（%） | ASTM D 2671 | ≥200 |
| Tensile strength after heat aged（MPa） | 180℃×168h | ≥7.3 |
| Ultimate elongation after heat aged（%） | 180℃×168h | ≥100% |
| Corrosion | UL 224 | Pass |
| Flammability | ASTM D 2671 C method | VW-1 |
| Voltage withstand | UL 224, 2500V, 60s | No breakdown |
| Heat shock | UL 224, 250℃×4h | No cracks, flowing or dripping |
| Cold blend | UL 224, -30℃×1h | No cracks |
| Dielectric strength（kV/mm） | ASTM D 149 | ≥15 |
| Volume resistivity（Ω·cm） | ASTM D 876 | ≥ 1014 |
| Water absorption（%） | UL 224 | ≤0.5 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
| SIZE | AS SUPPLIED | AFTER RECOVERY | STANDARD PACKAGE | ||
|---|---|---|---|---|---|
| Inch | mm | INTERNAL DIAMETER mm | INTERNAL DIAMETER MAX mm | WALL THICKNESS NOM mm | SPOOL LENGTH M/spool |
| 3/64 | 1.2 | ≥1.20 | 0.6 | ≥0.33 | 200 |
| 1/16 | 1.6 | ≥1.60 | 0.8 | ≥0.33 | 200 |
| 3/32 | 2.4 | ≥2.40 | 1.2 | ≥0.44 | 200 |
| 1/8 | 3.2 | ≥3.2 | 1.6 | ≥0.44 | 200 |
| 3/16 | 4.8 | ≥4.80 | 2.4 | ≥0.44 | 100 |
| 1/4 | 6.4 | ≥6.4 | 3.2 | ≥0.56 | 100 |
| 5/16 | 7.9 | ≥7.9 | 4.0 | ≥0.56 | 100 |
| 3/8 | 9.5 | ≥9.5 | 4.8 | ≥0.56 | 100 |
| 1/2 | 12.7 | ≥12.7 | 6.4 | ≥0.56 | 100 |
| 5/8 | 15.9 | ≥15.9 | 8.0 | ≥0.69 | 100 |
| 3/4 | 19.1 | ≥19.1 | 9.5 | ≥0.69 | 100 |
| 1 | 25.4 | ≥25.4 | 12.7 | ≥0.77 | 50 |
| 1-1/4 | 31.8 | ≥31.8 | 15.9 | ≥0.87 | 50 |
| 1-1/2 | 38.1 | ≥38.1 | 19.1 | ≥0.87 | 50 |
| 2 | 50.8 | ≥50.8 | 25.4 | ≥0.97 | 25 |
| 3 | 76.2 | ≥76.2 | 38.1 | ≥1.17 | 25 |
| 4 | 101.6 | ≥101.6 | 50.8 | ≥1.17 | 25 |
| 5 | 127 | ≥127 | 63.5 | ≥1.17 | 25 |
| 6 | 152.4 | ≥152.4 | 76.2 | ≥1.17 | 25 |
