- Ultra thin wall
- Very flexible
- Flame retardant
- Continuous Operating Temperature:-55 ℃ to135℃
- Fully shrink temperature: ≥ 120℃
- RoHS compliant
-
Meet SAE-AMS-DTL -23053/5
-
Class 1 and 3
.jpg)

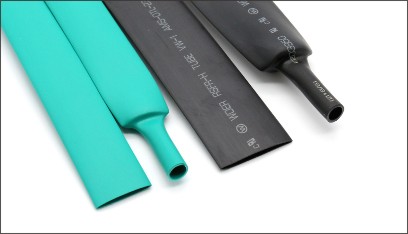

RSFR Tubes
Code: RSFR-135G(3X)
Features
Applications
Ultra thin wall, very flexible heat shrink tubing
Technical Data
| Property | Test Method | Typical Performance |
| Tensile strength （ MPa ） | ASTM D 2671 | ≥10.4 |
| Ultimate elongation （ % ） | ASTM D 2671 | ≥ 2 00 |
| Tensile strength after heat aged （ MPa ） | 1 75 ℃×168h | ≥7.3MPa |
| Ultimate elongation after heat aged （ % ） | 1 75 ℃×168h | ≥100 |
| Longitudinal chang(%) | ASTM D 2671 | -5% ～ +5% |
| Flammability | ASTM D 2671 C method | VW-1 |
| Voltage withstand | UL 224, 2500V, 60s | No breakdown |
| Heat shock | UL 224 , 250℃×4h | No cracks, flowing or dripping |
| Dielectric strength （ kV/mm） | ASTM D 149 | ≥ 15 |
| Volume resistivity （ Ω·cm） | ASTM D 876 | ≥ 1014 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
| SIZE | AS SUPPLIED | AFTER RECOVERY | STANDARD PACKAGE | ||
|---|---|---|---|---|---|
| Inch | mm | INTERNAL DIAMETER mm | INTERNAL DIAMETER MAX mm | WALL THICKNESS NOM mm | SPOOL LENGTH M/spool |
| 1/16 | 1.5 | 1.5 | ≤0.5 | 0.45±0.10 | 200 |
| 1/8 | 3.0 | 3.0 | ≤1.0 | 0.55±0.10 | 200 |
| 3/16 | 4.5 | 4.5 | ≤1.5 | 0.60±0.10 | 100 |
| 1/4 | 6.0 | 6.0 | ≤2.0 | 0.65±0.10 | 100 |
| 3/8 | 9.0 | 9.0 | ≤3.0 | 0.75±0.15 | 50 |
| 1/2 | 12 | 12.0 | ≤4.0 | 0.75±0.15 | 50 |
| 5/8 | 15 | 15.0 | ≤5.0 | 0.80±0.15 | 50 |
| 3/4 | 18 | 18.0 | ≤6.0 | 0.85±0.15 | 50 |
| 1 | 24 | 24.0 | ≤8.0 | 1.00±0.20 | 25 |
| 1-1/4 | 30 | 30.0 | ≤10.0 | 1.15±0.20 | 25 |
| 1-1/2 | 39 | 39.0 | ≤13.0 | 1.50±0.20 | 25 |
| 2 | 50 | 50 | ≤16.0 | 2.50±0.20 | 25 |
| | 60 | 60 | ≤20.0 | 2.60±0.20 | 25 |
| | 70 | 70 | ≤23.0 | 2.60±0.20 | 25 |
| 3 | 80 | 80 | ≤26.0 | 2.60±0.20 | 25 |
| | 90 | 90 | ≤30.0 | 2.60±0.20 | 25 |
| 4 | 100 | 100 | ≤33.0 | 2.60±0.20 | 25 |
