- Flexible
- Suitable for various applications
- Operating Temperature: -55℃ to 135℃
- Shrink Temperature: 120℃
- RoHS compliant
-
Meet SAE-AMS-DTL-23053/5
-
Class 1 and 3
.jpg)

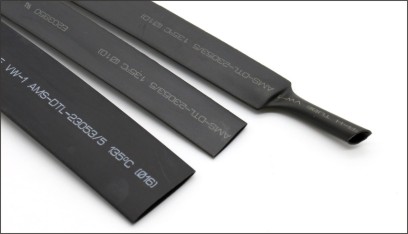

RSFR Tubes
Code: RSFR-135G(2X)
Features
Applications
Flame retardant, multi-purpose heat shrink tubing
Technical Data
| Property | Test Method | Typical Performance |
| Tensile strength （ MPa ） | ASTM D 2671 | ≥10.4 |
| Ultimate elongation （ %） | ASTM D 2671 | ≥ 2 00 |
| Tensile strength after heat aged （MPa ） | 1 75℃×168h | ≥7.3 |
| Ultimate elongation after heat aged（ %） | 1 75℃×168h | ≥100 |
| Longitudinal chang(%) | ASTM D 2671 | -5% ～ +5% |
| Flammability | ASTM D 2671C method | VW-1 |
| Voltage withstand | UL 224, 2500V, 60s | No breakdown |
| Heat shock | UL 224 ,250℃×4h | No cracks, flowing or dripping |
| Dielectric strength （ kV/mm ） | ASTM D 149 | ≥ 15 |
| Volume resistivity （ Ω·cm ） | ASTM D 876 | ≥ 1014 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
| SIZE | AS SUPPLIED | AFTER RECOVERY | STANDARD PACKAGE | ||
|---|---|---|---|---|---|
| Inch | mm | INTERNAL DIAMETER mm | INTERNAL DIAMETER MAX mm | WALL THICKNESS NOM mm | SPOOL LENGTH M/spool |
| 3/64 | 0.8 | 1.30±0.10 | ≤0.58 | 0.41±0.07 | 305 |
| 1/16 | 1.2 | 1.70±0.10 | ≤0.79 | 0.43±0.07 | 305 |
| 3/32 | 2.0 | 2.50±0.10 | ≤1.17 | 0.51±0.07 | 305 |
| 1/8 | 3.0 | 3.50±0.10 | ≤1.58 | 0.51±0.07 | 305 |
| 3/16 | 4.5 | 5.00±0.10 | ≤2.36 | 0.51±0.07 | 152.5 |
| 1/4 | 6.0 | 6.60±0.10 | ≤3.18 | 0.64±0.07 | 152.5 |
| 3/8 | 9.0 | 9.65±0.10 | ≤4.75 | 0.64±0.07 | 76.25 |
| 1/2 | 12.0 | 13.00±0.20 | ≤6.35 | 0.64±0.07 | 76.25 |
| 3/4 | 18.0 | 19.50±0.30 | ≤9.53 | 0.76±0.07 | 76.25 |
| 1 | 25.0 | 26.00±0.30 | ≤12.7 | 0.89±0.07 | 100 |
| 5/4 | 30.0 | 31.00±0.50 | ≤15.0 | 0.89±0.07 | 61 |
| 3/2 | 38 .0 | 39.00±0.50 | ≤19.1 | 1.00±0.07 | 50 |
| 2 | 50.0 | 52.50±1.50 | ≤25.4 | 1.15±0.07 | 50 |
| 3 | 75.0 | 79.00±2.0 | ≤38.1 | 1.27±0.07 | 50 |
| 4 | 100.0 | 104.0±2.0 | ≤50.8 | 1.40±0.07 | 50 |
