- Flexible
- Flame retardant
- Ultra thin wall
- Continuous Operating temperature: -55℃ to 125℃
- Fully shrink temperature: ≥125℃
- RoHS compliant

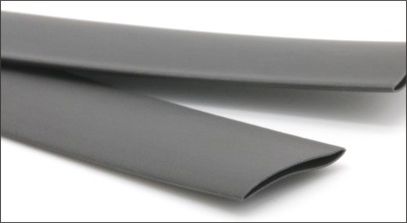

RSFR Tubes
Code: RSFR-H(3X)
Features
Applications
Universal heat shrink tubing with excellent physical and mechanical properties
Technical Data
| Property | Test Method | Typical Performance |
| Tensile strength（MPa） | ASTM D 2671 | ≥10.4 |
| Ultimate elongation（%） | ASTM D 2671 | ≥200 |
| Tensile strength after heat aged（MPa） | 158℃×168h | ≥7.3 |
| Ultimate elongation after heat aged（%） | 158℃×168h | ≥100 |
| Longitudinal chang(%) | ASTM D 2671 | -5%～+5% |
| Flammability | ASTM D 2671 C method | VW-1 |
| Voltage withstand | UL 224, 2500V, 60s | No breakdown |
| Dielectric strength（kV/mm） | ASTM D 149 | ≥15 |
| Volume resistivity（Ω·cm） | ASTM D 876 | ≥1014 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
| SIZE | AS SUPPLIED | AFTER RECOVERY | STANDARD PACKAGE | ||
| Inch | mm | INTERNAL DIAMETER mm | INTERNAL DIAMETER mm | WALL THICKNESS mm | SPOOL LENGTH M/spool |
| 1/16 | 1.5 | 1.6±0.1 | ≤0.50 | 0.45±0.10 | 200 |
| 1/8 | 3.0 | 3.2 ±0.1 | ≤1.00 | 0.55±0.10 | 200 |
| 3/16 | 4.5 | 4.7 ±0.1 | ≤1.50 | 0.60±0.10 | 100 |
| 1/4 | 6.0 | 6.2 ±0.1 | ≤2.00 | 0.65±0.10 | 100 |
| 3/8 | 9.0 | 9.3 ± 0.2 | ≤3.00 | 0.75±0.15 | 50 |
| 1/2 | 12.0 | 12.3 ±0. 2 | ≤4.00 | 0.75±0.15 | 50 |
| 5/8 | 15.0 | 15.3 ±0. 2 | ≤5.00 | 0.80±0.15 | 50 |
| 3/163/4 | 18.0 | 1 8.3 ±0. 2 | ≤6.00 | 0.85±0.15 | 50 |
| 1 | 24.0 | 24.4 ±0. 3 | ≤8.00 | 1.00±0.20 | 25 |
| 1-1/4 | 30.0 | 30.4 ±0. 3 | ≤10.0 | 1.15±0.20 | 25 |
| 1-1/2 | 39.0 | 39.6 ±0. 5 | ≤13.0 | 1.50±0.20 | 25 |
| 2 | 50.0 | 50.6 ±0. 5 | ≤16.0 | 2.50±0.20 | 25 |
| | 60.0 | 61.5 ± 1.0 | ≤20.0 | 2.60±0.20 | 25 |
| | 70.0 | 71.5 ± 1.0 | ≤23.0 | 2.60±0.20 | 25 |
| 3 | 80.0 | 81.5 ± 1.0 | ≤26.0 | 2.60±0.20 | 25 |
| | 90.0 | 91.5 ± 1.0 | ≤30.0 | 2.60±0.20 | 25 |
| 4 | 100.0 | 101.5 ±1 .0 | ≤33.0 | 2.60±0.20 | 25 |
