- Ultra thin wall
- Flexible
- Zero halogen
- Flame retardant
- Low smoke generation if burning
- Operating temperature: -55℃ to 125℃
- Fully shrink temperature: ≥110℃
- RoHS and Sony compliant
RSFR Tubes
Code: RSFR-HCB
Features
Applications

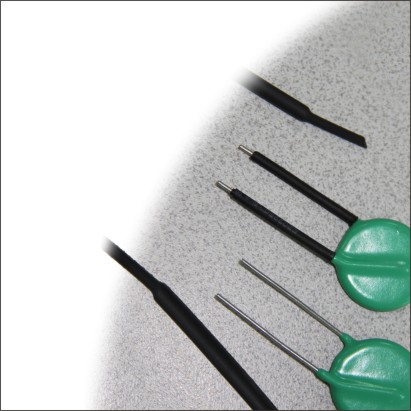

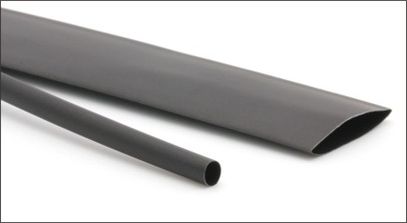

Ultra thin wall, flexible heat shrink tubing
Technical Data
| Property | Test Method | Typical Performance |
| Tensile strength（MPa） | ASTM D 2671 | ≥10.4 |
| Ultimate elongation（%） | ASTM D 2671 | ≥200 |
| Tensile strength after heat aged（MPa） | 158℃×168h | ≥7.3 |
| Ultimate elongation after heat aged（%） | 158℃×168h | ≥100 |
| Longitudinal chang(%) | ASTM D 2671 | -5%～+5% |
| Flammability | ASTM D 2671 C method | VW-1 |
| Dielectric strength（kV/mm） | ASTM D 149 | ≥15 |
| Volume resistivity（Ω·cm） | ASTM D 876 | ≥1014 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
| SIZE | AS SUPPLIED | AFTER RECOVERY | STANDARD PACKAGE | ||
| Inch | mm | INTERNAL DIAMETER mm | INTERNAL DIAMETER mm | WALL THICKNESS mm | SPOOL LENGTH M/spool |
| 1/16 | 1.0 | 1.40±0.20 | ≤0.65 | 0.20±0.10 | 200 |
| | 1.5 | 1.90±0.20 | ≤0.85 | 0.20±0.10 | 200 |
| 3/32 | 2.0 | 2.40±0.20 | ≤1.00 | 0.22±0.10 | 200 |
| | 2.5 | 2.90±0.20 | ≤1.30 | 0.25±0.10 | 200 |
| 1/8 | 3.0 | 3.40±0.20 | ≤1.50 | 0.28±0.10 | 200 |
| | 3.5 | 3.90±0.20 | ≤1.80 | 0.28±0.10 | 200 |
| | 4.0 | 4.40±0.20 | ≤2.00 | 0.30±0.10 | 200 |
| 3/16 | 4.5 | 4.90±0.20 | ≤2.30 | 0.30±0.10 | 200 |
| | 5.0 | 5.50±0.20 | ≤2.50 | 0.32±0.10 | 100 |
| 1/4 | 6.0 | 6.50±0.20 | ≤3.00 | 0.32±0.10 | 100 |
| 5/16 | 7.0 | 7.50±0.30 | ≤3.50 | 0.32±0.10 | 100 |
| | 8.0 | 8.50±0.30 | ≤4.00 | 0.32±0.10 | 100 |
| 3/8 | 9.0 | 9.50±0.30 | ≤4.50 | 0.35±0.10 | 100 |
| | 10.0 | 10.50±0.30 | ≤5.00 | 0.35±0.10 | 100 |
| | 11.0 | 11.50±0.30 | ≤5.50 | 0.40±0.10 | 100 |
| 1/2 | 12.0 | 12.50±0.30 | ≤6.00 | 0.40±0.10 | 100 |
| | 13.0 | 13.50±0.30 | ≤6.50 | 0.40±0.10 | 100 |
| | 14.0 | 14.50±0.30 | ≤7.00 | 0.40±0.10 | 100 |
| 5/8 | 15.0 | 15.50±0.40 | ≤7.50 | 0.40±0.10 | 100 |
| | 16.0 | 16.50±0.40 | ≤8.00 | 0.40±0.10 | 100 |
| | 17.0 | 17.50±0.40 | ≤8.50 | 0.40±0.10 | 100 |
| 3/4 | 18.0 | 18.50±0.40 | ≤9.00 | 0.42±0.10 | 100 |
| | 20.0 | 20.50±0.50 | ≤10.0 | 0.45±0.10 | 100 |
| | 22.0 | 22.50±0.50 | ≤11.0 | 0.45±0.10 | 100 |
| 1 | 25.0 | 25.50±0.50 | ≤12.5 | 0.45±0.10 | 50 |
| | 28.0 | 28.50±0.50 | ≤14.0 | 0. 60 ±0.10 | 50 |
