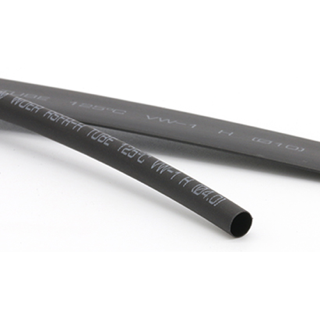

Name: RSFR Tubes
Brand: LIDAVI
Rating: 4.4 (103 reviews)

Features

Ultra thin wall
Flexible
Halogen free
Flame retardant
low smoke generation if burning
Continuous operating Temperature:-55 ℃ to 125 ℃
Fully shrink temperature:12 5 ℃
RoHS and Sony compliant

Applications

Thin wall halogen free, flexible heat shrink tubing.

Technical Data


Property	Test Method	Typical Performance
Tensile strength （MPa）	ASTM D 2671	≥10.4
Ultimate elongation （%）	ASTM D 2671	≥200
Tensile strength after heat aged （MPa）	158 ℃×168h	≥7.3
Ultimate elongation after heat aged （%）	158 ℃×168h	≥100
Longitudinal chang(%)	ASTM D 2671	-5% ～+5%
Flammability	ASTM D 2671 C method	VW-1
Dielectric strength （kV/mm）	ASTM D 149	≥15
Volume resistivity （Ω·cm）	ASTM D 876	≥10¹⁴

Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy

Other properties


SIZE		AS SUPPLIED	AFTER RECOVERY		STANDARD PACKAGE
Inch	mm	INTERNAL DIAMETER mm	INTERNAL DIAMETER MAX mm	WALL THICKNESS NOM mm	SPOOL LENGTH M/spool
3/64	0.8	1.10±0.20	0.50	0.33±0.10	200
1/16	1.0	1.50±0.20	0.65	0.36±0.10	200
	1.5	2.00±0.20	0.85	0.36±0.10	200
3/32	2.0	2.50±0.20	1.00	0.45±0.10	200
	2.5	3.00±0.20	1.30	0.45±0.10	200
1/8	3.0	3.50±0.20	1.50	0.45±0.10	200
	3.5	4.00±0.20	1.80	0.45±0.10	200
	4.0	4.70±0.20	2.00	0.45±0.10	200
3/16	4.5	5.00±0.20	2.30	0.56±0.10	100
	5.0	5.50±0.20	2.50	0.56±0.10	100
1/4	6.0	6.50±0.20	3.00	0.56±0.10	100
5/16	7.0	7.50±0.30	3.50	0.56±0.10	100
	8.0	8.50±0.30	4.00	0.56±0.10	100
3/8	9.0	9.50±0.30	4.50	0.56±0.10	100
	10	10.50±0.3	5.00	0.56±0.10	100
	11	11.50±0.30	5.50	0.56±0.10	100
1/2	12	12.50±0.30	6.00	0.56±0.10	100
	13	13.50±0.30	6.50	0.56±0.10	100
	14	14.50±0.30	7.00	0.70±0.10	100
5/8	15	15.50±0.40	7.50	0.70±0.10	100
	16	16.50±0.40	8.00	0.70±0.10	100
	17	17.50±0.40	8.50	0.70±0.10	100
3/4	18	19.00±0.50	9.00	0.70±0.10	100
	20	22.00±0.50	10.0	0.83±0.15	100
	22	24.00±0.50	11.0	0.83±0.15	100
1	25	26.00±0.50	12.5	0.90±0.15	50
	28	29.00±0.50	14.0	0.90±0.15	50
1-1/4	30	31.50±1.00	15.0	1.00±0.15	50
	35	36.50±1.00	17.5	1.00±0.15	50
1-1/2	40	41.50±1.00	20.0	1.00±0.15	50
	45	46.50±1.50	22.5	1.00±0.15	25
2	50	≥50	25.0	1.10±0.15	25
	60	≥60	31.0	1.20±0.15	25
	70	≥70	36.0	1.30±0.20	25
3	80	≥80	41.0	1.30±0.20	25
	90	≥90	46.0	1.30±0.20	25
4	100	≥100	51.0	1.30±0.20	25
5	120	≥120	61.0	1.30±0.20	25
6	150	≥150	76.0	1.30±0.20	25
7	180	≥180	91.0	1.30±0.30	25
