Code: No.130

Features

No.130 is a thin premium grade plasticized polyvinyl chloride film coated with an aggressive rubber resin adhesive with good characteristic. It is highly conformable and unaffected by most chemicals and moisture

Applications

It is specially designed for wire harness and other electrical insulating application, wrapped wires with a half-lap is better, the last layer should be no tension to prevent flagging

Technical Data

Content		Unit	Standard value
Thickness		mm	0.11
Tensile strength		N/cm	20
Elongation		%	200
Adhesion strength	to steel	N/cm
Adhesion strength	to backing	N/cm
Breakdown voltage		KV	5
Applicable temperature		^oC	0 ~ 80

Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy

Other properties

Content	Unit	Stard value
Width	mm	18, 19, 24, 48, cut-sizes
Length	m	10, 20
Color	-	BLACK, WHITE, RED, YELLOW, GREEN, BLUE
Core ID	mm	38

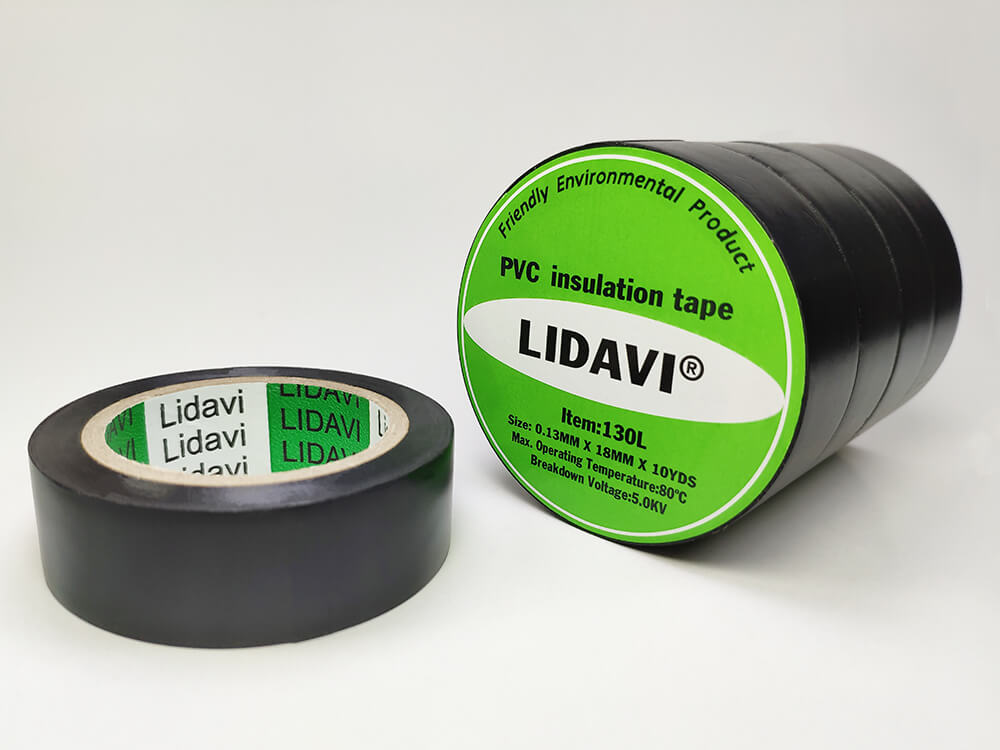

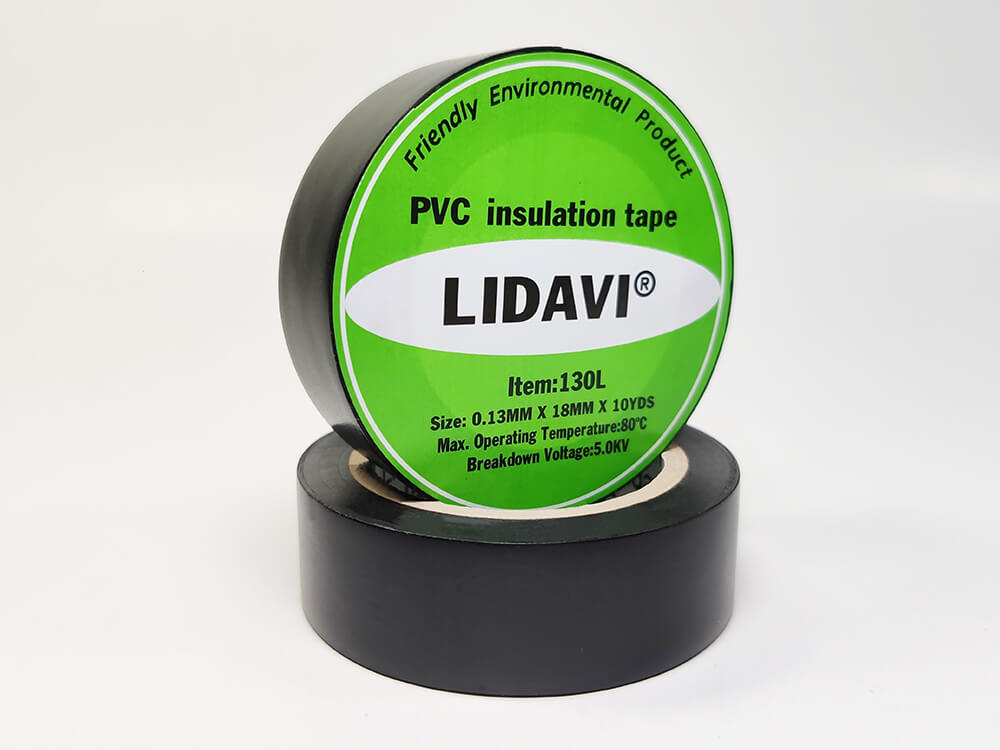

PVC Electrical Insulating Tape No.130
