- Chemical insert
- High temperature resistance
- Corrosion resistance (acid/alkali resistance, chemical reagent oil-proof)
- High pressure resistance
- Standard UL224 VW-1 C-UL CSA22.20FT
- UL number: E203950
- Continuous operating temperature: -80oC ~ 200oC
- Color: Multi-color

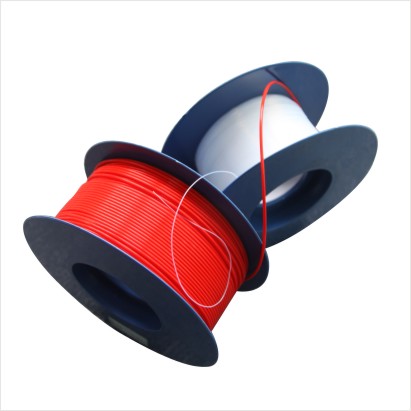

PTFE Teflon Tubing
Code: LIDAVI-PTFE Tube
Features
Applications
Specially designed for protecting applications in extreme electrical, chemical and thermal environment
Technical Data
|
Property |
Unit |
Standard |
Test Method |
|
Tensile Strength |
MPa |
≥ 25 |
ASTM D 2671 |
|
Elongation |
% |
≥ 300 |
ASTM D 2671 |
|
Flammability |
S |
VW-1 |
ASTM D 2671 |
|
Dielectric Strength |
K.V/mm |
≥ 26 |
IEC 60243 |
|
Volume Resistivity |
Ω.cm |
≥ 1 x 1014 |
IEC 60093 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
|
Size (AWG) |
ID (mm) |
After Recovery |
Packing (m/reel) |
||
|
ID (mm) |
Total Wall Thickness (mm) |
Adhesive Thickness (mm) |
|||
|
30 |
0.30 ± 0.10 |
0.08 ± 0.10 |
0.70 ± 0.10 |
0.60 ± 0.10 |
305 |
|
28 |
0.38 ± 0.10 |
0.88 ± 0.10 |
0.78 ± 0.10 |
0.68 ± 0.10 |
305 |
|
26 |
0.46 ± 0.10 |
0.96 ± 0.10 |
0.86 ± 0.10 |
0.76 ± 0.10 |
305 |
|
24 |
0.56 ± 0.10 |
1.16 ± 0.10 |
1.06 ± 0.10 |
0.86 ± 0.10 |
305 |
|
23 |
0.66 ± 0.10 |
1.26 ± 0.10 |
1.16 ± 0.10 |
0.96 ± 0.10 |
305 |
|
22 |
0.71 ± 0.10 |
1.31 ± 0.10 |
1.21 ± 0.10 |
1.01 ± 0.10 |
305 |
|
21 |
0.81 ± 0.10 |
1.41 ± 0.10 |
1.31 ± 0.10 |
1.11 ± 0.10 |
305 |
|
20 |
0.86 ± 0.10 |
1.66 ± 0.10 |
1.46 ± 0.10 |
1.16 ± 0.10 |
305 |
|
19 |
0.96 ± 0.20 |
1.76 ± 0.20 |
1.56 ± 0.20 |
1.26 ± 0.20 |
200 |
|
18 |
1.07 ± 0.20 |
1.87 ± 0.20 |
1.67 ± 0.20 |
1.37 ± 0.20 |
200 |
|
17 |
1.19 ± 0.20 |
1.99 ± 0.20 |
1.79 ± 0.20 |
1.49 ± 0.20 |
200 |
|
16 |
1.34 ± 0.20 |
2.14 ± 0.20 |
1.94 ± 0.20 |
1.64 ± 0.20 |
153 |
|
15 |
1.50 ± 0.20 |
2.30 ± 0.20 |
2.10 ± 0.20 |
1.80 ± 0.20 |
153 |
|
14 |
1.68 ± 0.20 |
2.48 ± 0.20 |
2.28 ± 0.20 |
2.08 ± 0.20 |
100 |
|
13 |
1.93 ± 0.20 |
2.73 ± 0.20 |
2.53 ± 0.20 |
2.33 ± 0.20 |
100 |
|
12 |
2.16 ± 0.25 |
2.96 ± 0.25 |
2.76 ± 0.25 |
2.56± 0.25 |
100 |
|
11 |
2.41 ± 0.25 |
3.21 ± 0.25 |
3.01 ± 0.25 |
2.81± 0.25 |
150 |
|
10 |
2.86 ± 0.25 |
3.49 ± 0.25 |
3.29 ± 0.25 |
3.09 ± 0.25 |
150 |
|
9 |
3.00 ± 0.25 |
4.00 ± 0.25 |
3.80 ± 0.25 |
3.40 ± 0.25 |
150 |
|
8 |
3.38 ± 0.25 |
4.38 ± 0.25 |
4.18 ± 0.25 |
3.78 ± 0.25 |
100 |
|
7 |
3.76 ± 0.25 |
4.76 ± 0.25 |
4.56 ± 0.25 |
4.16 ± 0.25 |
100 |
|
6 |
4.22 ± 0.25 |
5.22 ± 0.25 |
5.02 ± 0.25 |
4.80 ± 0.25 |
100 |
|
5 |
4.72 ± 0.25 |
5.72 ± 0.25 |
5.52 ± 0.25 |
5.32 ± 0.25 |
50 |
|
4 |
5.28 ± 0.30 |
6.28 ± 0.30 |
6.08 ± 0.30 |
5.88 ± 0.25 |
50 |
|
3 |
5.94 ± 0.30 |
6.94 ± 0.30 |
6.74 ± 0.30 |
6.54 ± 0.25 |
1.00 |
|
2 |
6.68 ± 0.30 |
7.68 ± 0.30 |
7.48 ± 0.30 |
7.28 ± 0.25 |
1.00 |
|
1 |
7.46 ± 0.30 |
8.46 ± 0.30 |
8.26± 0.30 |
8.06 ± 0.25 |
1.00 |
|
0 |
8.38 ± 0.30 |
9.38 ± 0.30 |
9.18 ± 0.30 |
8.98 ± 0.25 |
1.00 |
