- High temperature resistance—It Can continuously work under-140 to 320℃,max resist high temperature up to 360℃.
- Permeability—It can avoid wasting heat and improve drying efficiency for it’s permeability.
- Chemical resistance—It can resist all most of chemical medicines.
- Non Stick—It can easily remove all kinds of adhesives such as resin, paint and chemical medicine, easy to clean.
- Good flex fatigue resistance—It has high tensile strength and excellent flex fatigue resistance. It’s better for small wheels.

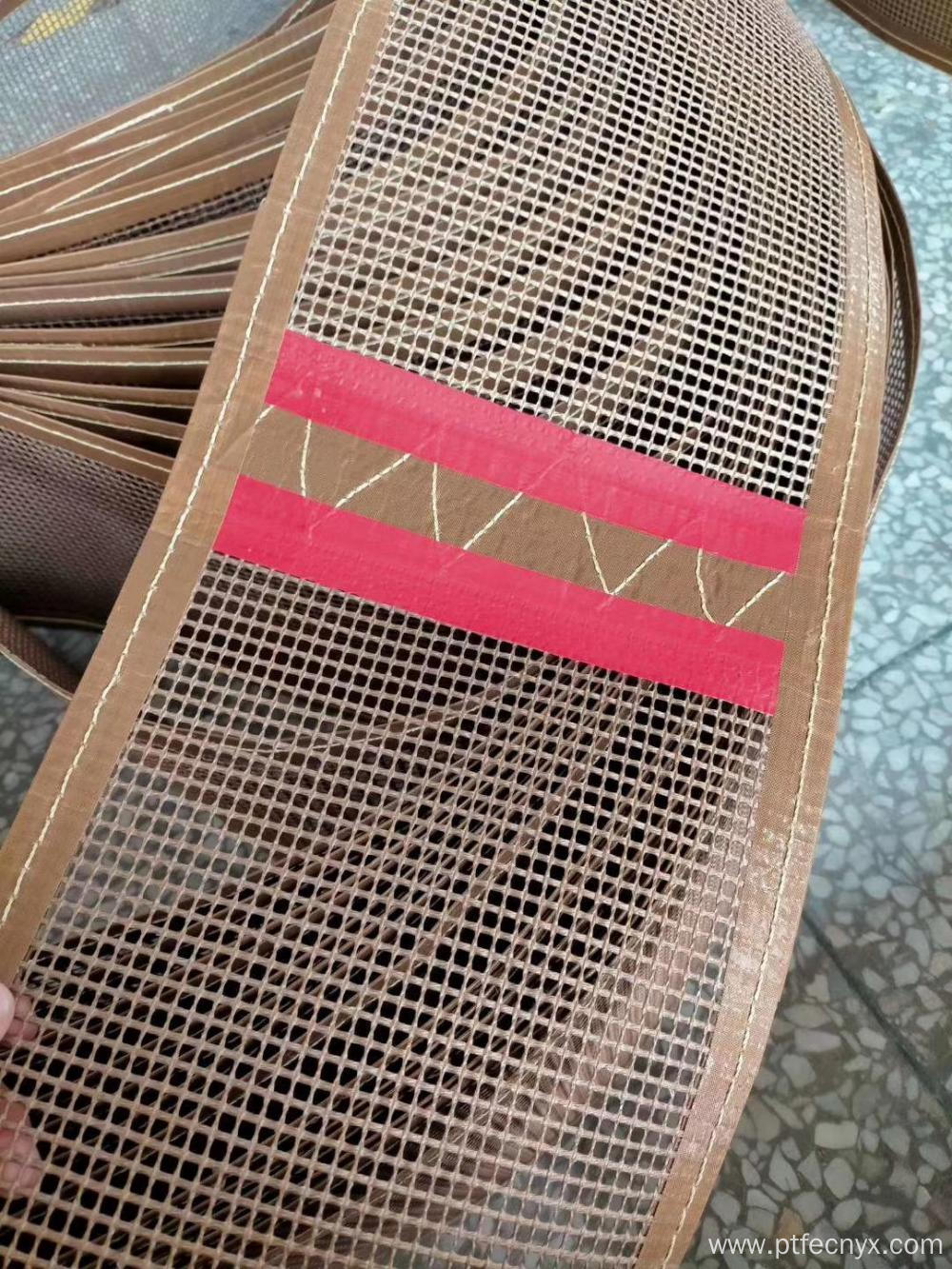

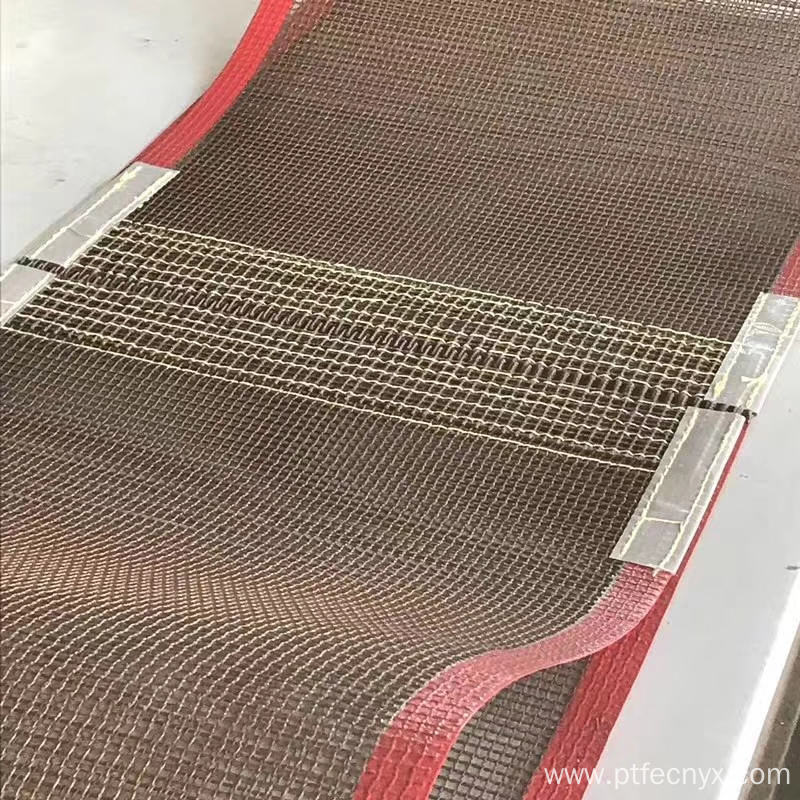

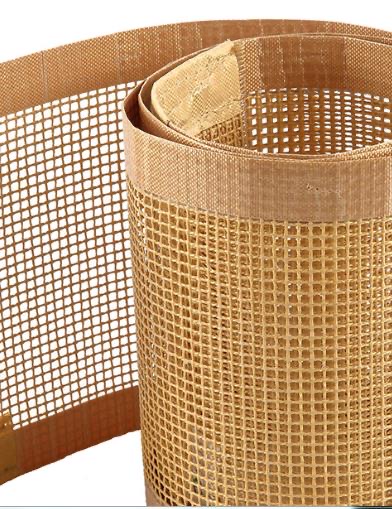

PTFE Coated Open Mesh Belt
Code: Open Mesh Belt Series
Features
Applications

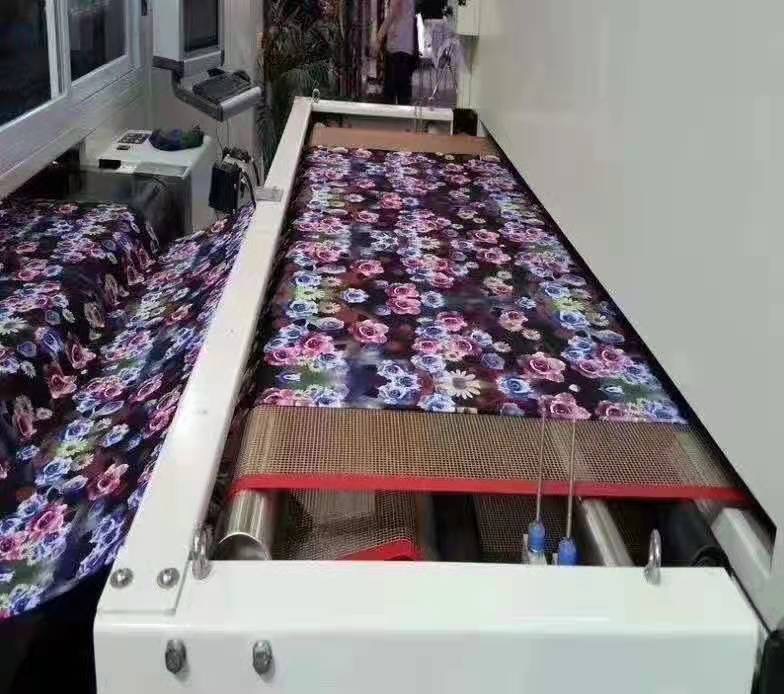

- Drying machine for non-woven textile, textile printing, silk-printing and dyeing machine.
- Shrinking machine for garment fabric, high-frequency and UV dryer.

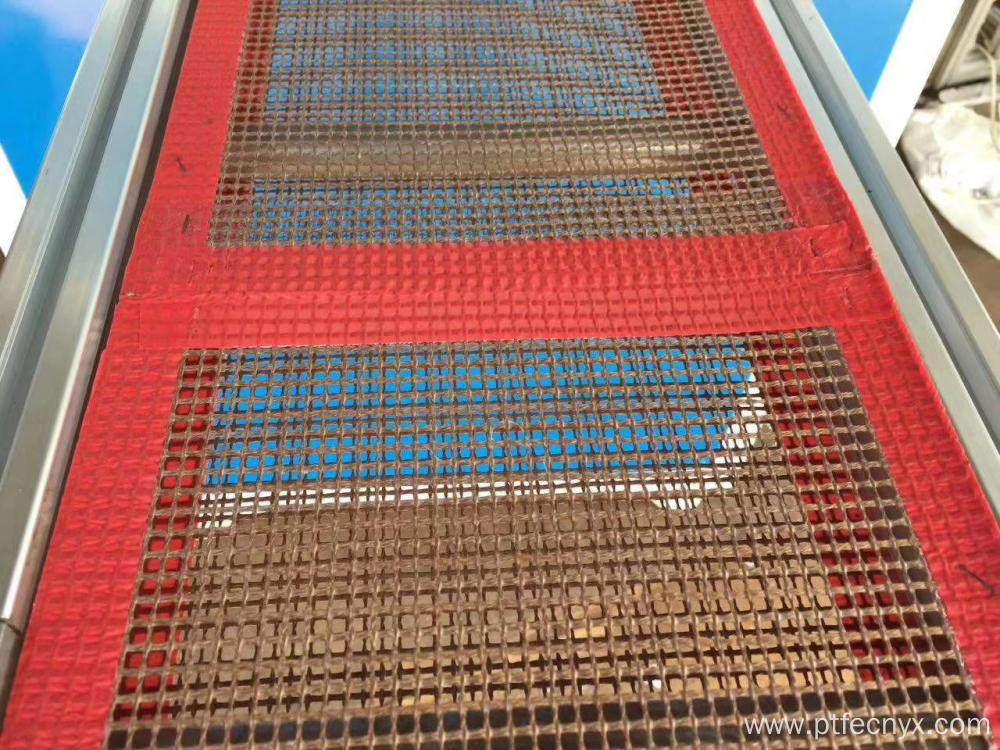

- Conveyer belt for hot-air dryer, various of food baking, quick-frozen machines.
- Oiling machine for paper glazing and waxing, plant engineering.
- Separating sheet for hardboard production etc.
Technical Data
| Item | Mesh Size | Materials | Thickness | Weight | Temp Resistance | Max-Width | Tensile Strength |
| YX3001 | 1 x 1mm | Glass | 0.5mm | 370g/m2 | 1400C~3200C | 4000mm | 310/290N/cm |
| YX3002 | 2 x 2mm | Glass | 0.7mm | 450g/m2 | 4000mm | 350/310N/cm | |
| YX3003 | 4 x 4mm | Glass |
1.0mm |
400g/m2 | 4000mm | 390/320N/cm | |
| YX3004 | 4 x 4mm | Glass | 1.0mm | 450g/m2 | 4000mm | 390/320N/cm | |
| YX3007 | 4 x 4mm |
Kevlar & Fiberglass |
1.2mm | 600g/m2 | 4000mm | 895/370N/cm | |
| YX3008 | 4 x 4mm | Glass | 1.0mm | 500g/m2 | 4000mm | 395/370N/cm | |
| YX3010 | 4 x 4mm |
Kevlar Fabric |
1.0mm | 500g/m2 | 4000mm | 900/600N/cm | |
| YX3012 | 4 x 4mm | Glass | 1.0mm | 550g/m2 | 4000mm | 395/370N/cm | |
| YX3013 | 10 x 10mm | Glass | 1.2mm | 450g/m2 | 4000mm | 360/300N/cm | |
| YX3014 | 0.5 x 1mm | Glass | 0.5mm | 420g/m2 | 4000mm | 310/290N/cm | |
| YX3015 | 2 x 2.5mm | Glass | 0.9mm | 600g/m2 | 3000mm | 390/320N/cm |
Other properties
There are some kind of open mesh Belts:
- PTFE/GLASS Open Mesh Fabric

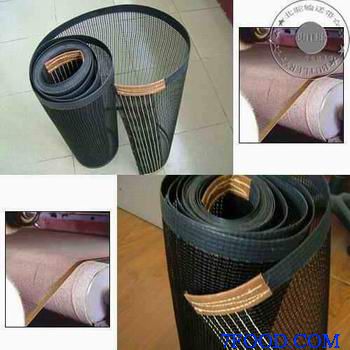

- PTFE/GLASS Black Anti-Static Open Mesh Fabric
- PTFE/KEVLAR Open Mesh Fabric
- PTFE/ARAMID-GLASS Open Mesh Fabric
