- Offers superior electrical insulation
- Good heat resistance
- Corrosion resistance
- Good dimesion Stability
- Narrow width for small component process
PVC Wireharness Adhesive Tapes
PVC Electrical Insulating adhesive Tapes
PVC Wireharness Protective Film
Reinforced Filament Adhesive Tapes
PVC Floor Marking Tapes
Acrylic Foam Tapes
Crepe Paper Masking Tapes
Packaging Adhesive Tapes
Anti-Skid Adhesive Tapes
Self-Fusing Rubber Tapes
PET Adhesive Tapes
PET Electronic Tape

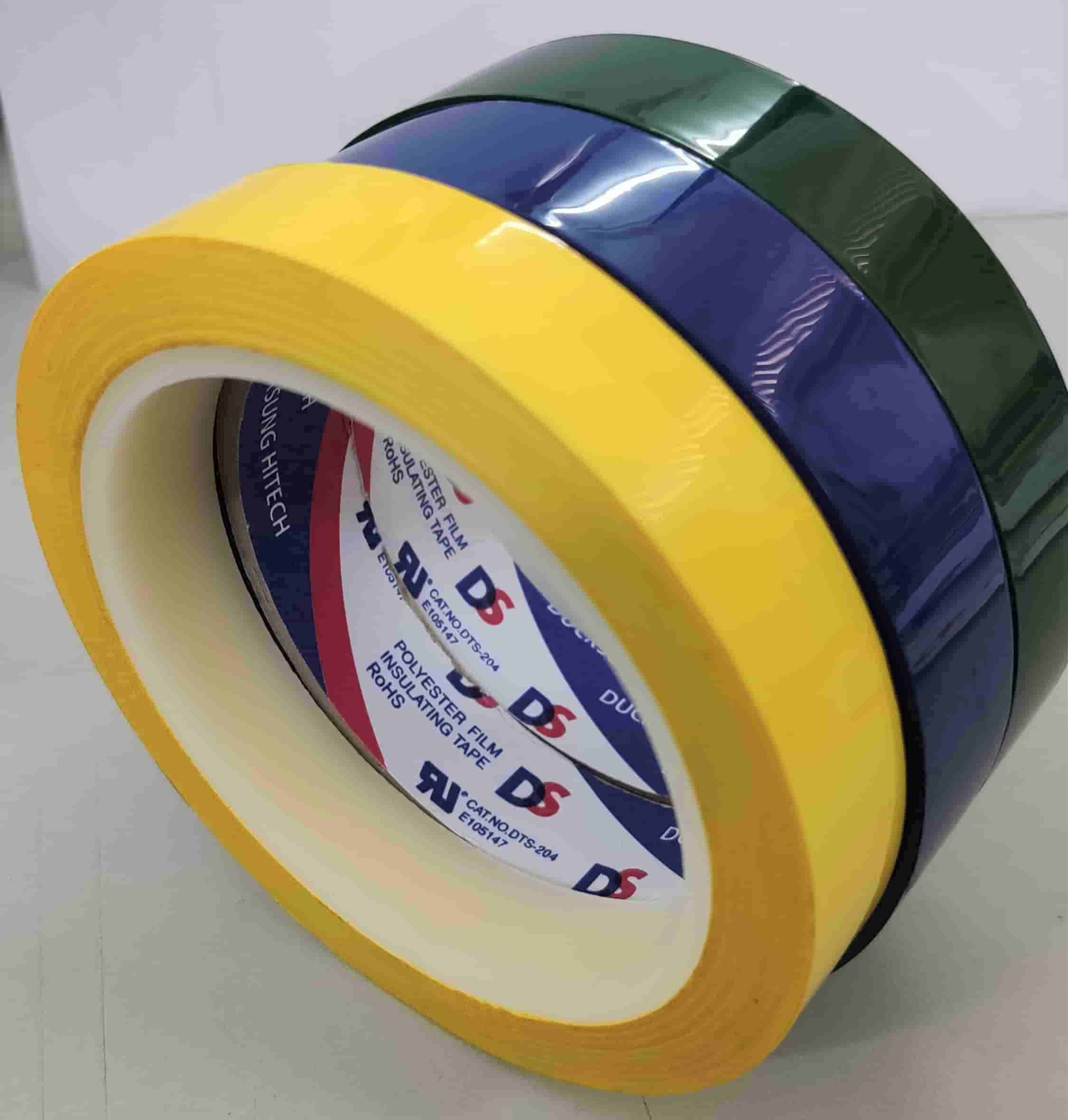

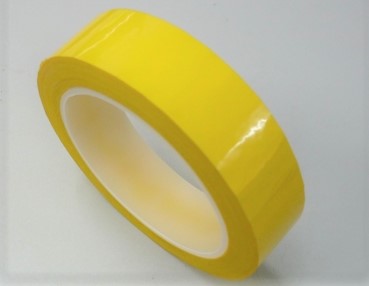

Code: DTS-204
Features
Applications
- Electrical insulation for transformers, coils
- Applicability for heavy electrical equipments
Technical Data
| Content | Unit | Standard value |
| Backing | - | Polyester film |
| Thickness | µ | 52 ± 5 |
| Adhesion strength | gf/10mm | 240 ↑ |
| Tensile strength | kgf/10mm | 3 ↑ |
| Elongation | % | 60 ↑ |
| Breakdown voltage | KV/25mm | 4 ↑ |
| Temperature range | oC | 130 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
| Content | Unit | Standard value |
| Width | mm | 6, 10, 12, 19, 25, requested cut-sizes |
| Length | m | 30, 50, 60 |
| Color | - | YELLOW, RED, WHITE, BLUE, GREEN |
| Core ID | mm | 38, 76 |
