- Non-shrinkable tubing
- Good flexibility
- Flame retardance
- Continuous operating temperature: -55oC ~ 125oC
- RoHS compliance
- Color: Black

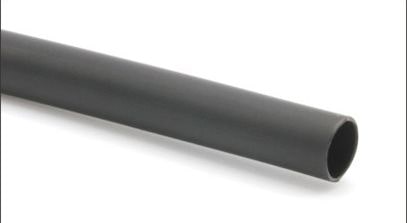

Non-shrinkable Polylefin Tubing
Code: LIDAVI-PO
Features
Applications
Non-shrinkable Polyolefin tubing is ideal for using in wire harness, electronic, electric system.
Technical Data
|
Property |
Unit |
Standard |
Test Method |
|
Tensile Strength |
MPa |
≥ 10.4 |
ASTM D 2671 |
|
Elongation |
% |
≥ 200 |
ASTM D 2671 |
|
Water absorption |
% |
≤0.5 |
ASTM D 570 |
|
Dielectric Strength |
K.V/mm |
≥ 15 |
ASTM D 149 |
|
Volume Resistivity |
Ω.cm |
≥ 1014 |
ASTM D 876 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
|
Size (AWG) |
Internal Diameter (mm) |
Wall Thickness (mm) |
Packing |
|
AWG18 |
1.00 ± 0.10 |
0.40 ± 0.06 |
200 |
|
AWG16 |
1.30 ± 0.10 |
0.40 ± 0.06 |
200 |
|
AWG14 |
1.65 ± 0.10 |
0.40 ± 0.06 |
200 |
|
AWG12 |
2.10 ± 0.15 |
0.40 ± 0.06 |
200 |
|
AWG10 |
2.60 ± 0.15 |
0.50 ± 0.08 |
200 |
|
AWG8 |
3.30 ± 0.15 |
0.50 ± 0.08 |
200 |
|
AWG6 |
4.10 ± 0.20 |
0.50 ± 0.08 |
100 |
|
AWG4 |
5.20 ± 0.20 |
0.50 ± 0.08 |
100 |
|
AWG2 |
6.50 ± 0.20 |
0.50 ± 0.08 |
100 |
|
AWG0 |
8.30 ± 0.30 |
0.50 ± 0.08 |
100 |
|
3/8” |
9.50 ± 0.40 |
0.50 ± 0.08 |
100 |
|
7/16” |
11.10 ± 0.40 |
0.50 ± 0.08 |
100 |
|
1/2’’ |
12.70 ± 0.40 |
0.50 ± 0.08 |
100 |
