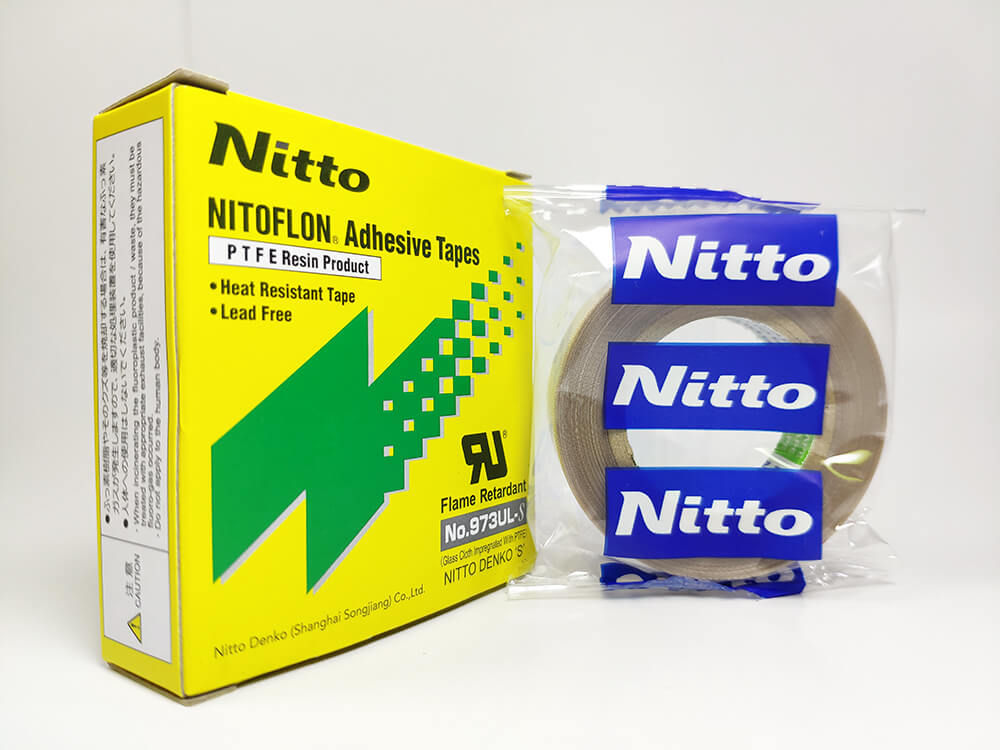

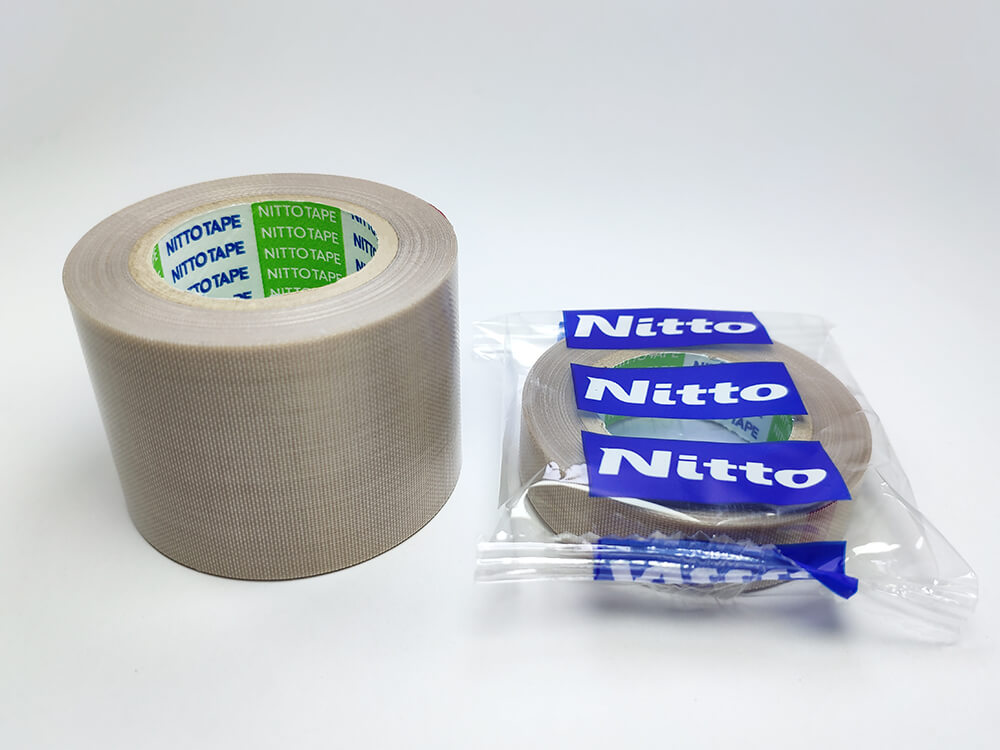

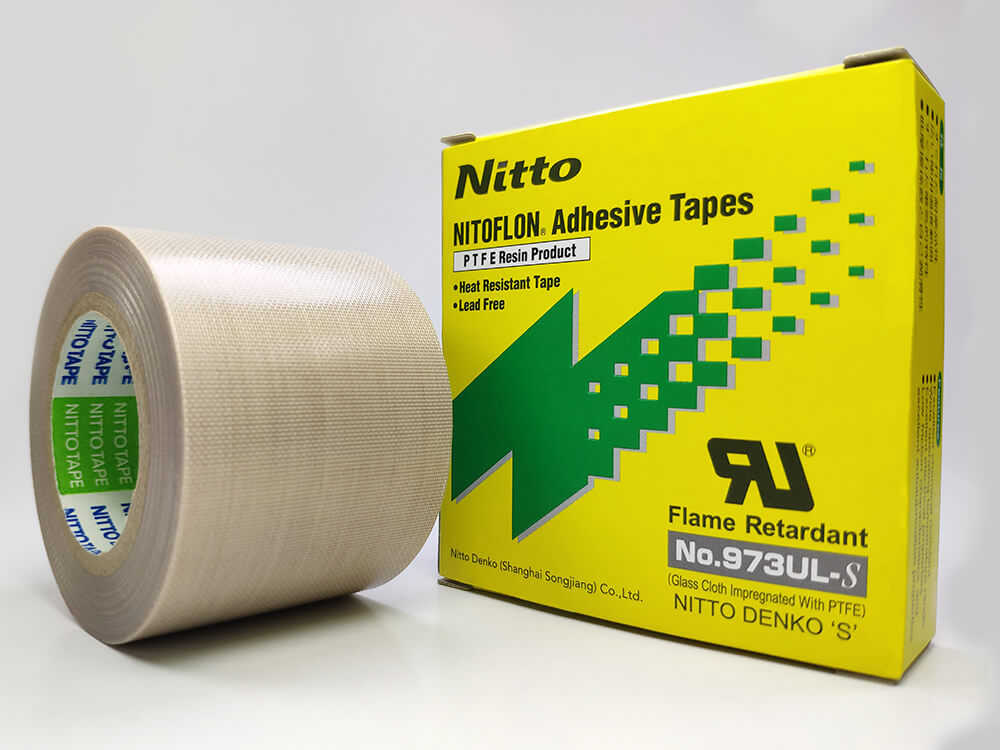

Name: Nitto Teflon Tape - 973ULS
Brand: LIDAVI
Rating: 4.4 (103 reviews)

Teflon Products

Teflon Tapes

Pure PTFE Adhesive Tapes PTFE Coated Fiberglass Adhesive Tapes Silicone Adhesive Tapes

Teflon Tubings

Teflon Fabrics

PTFE Coated Fiberglass Fabrics Silicone Rubber Coated Fibeglass Fabrics Fiberglass Fabrics Belts

Code: Nitto 973UL-S

Features

Superior mold-releasing and sliding properties.
Good holding property at elevated temperatures and dimensional stability.
The non-adhesive side exhibits excellent characteristics of polytetrafluoroethylene such as electrical
properties, resistance to heat, weather, chemical, and water (water-shedding), and non-adhesiveness

Applications

Heat-resistant insulation
Heat-resistant lubricants for heat sealing
Chute and hopper linings
Surface coating of sizing rolls for dying and resin treatment

Technical Data

Content		Unit	Standard value
Thickness		mm	0.13
Tensile strength		N/19mm	240
Adhesion to steel	25^oC	N/19mm	6.8
	100^oC	N/19mm	3.2
	150^oC	N/19mm	2.2
Unwinding force		N/19mm	5.9
Adhesive residue test	200^oC x 5 days	-	Good
	230^oC x 2 days
	250^oC x 5 hours

Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy

Other properties

Content	Unit	Standard value
Width	mm	13, 19, 25, 38, other cut-sizes
Length	m	10
Color	-	Brown
Core ID	mm	32
