- Superior flame resistance.
- Superior in mold-releasing and sliding property.
- Non-adhesive side of the tape offers excellent characteristics of polytetrafluoroethylene, such as
electrical property, resistance to heat, weather, chemical, and water (water-shedding), low friction
coefficient and non-adhesiveness. - Can smoothly adhere, wind, band and seal, just like regular adhesive tapes.

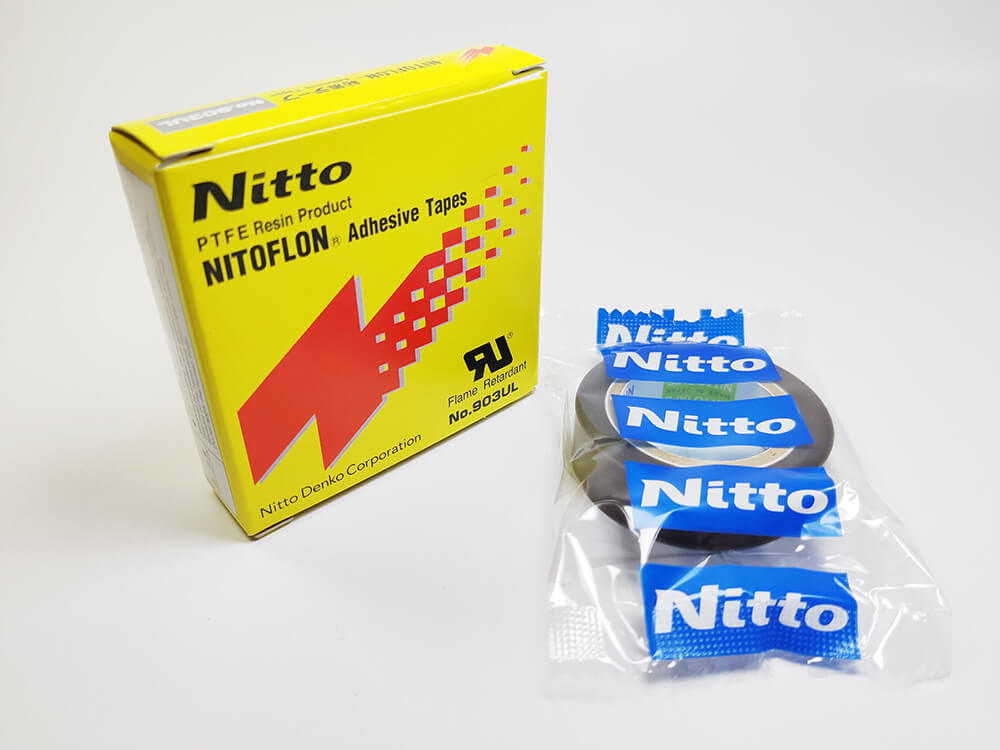

Nitto Teflon Tape - 903UL
Code: Nitto 903UL
Features
Applications
- For heat-resistant masking.
- For heat-sealing.
- For heat-resistant electrical insulation
Technical Data
| Content | Unit | Standard value | |
| 903UL-0.08mm | 903UL-0.13mm | ||
| Thickness | mm | 0.08 | 0.13 |
| Tensile strength | N/19mm | 55 | 93 |
| Elongation | % | 180 | 220 |
| Peel strength | N/19mm | 5.6 | 7.1 |
| Unwinding force | N/19mm | 4.4 | 5.8 |
| Breakdown voltage | KV | 8 | 11 |
| Heat resistance | - | Good | |
| Flame retardant | - | UL510 (File No.34833) | |
| Operating temperature | oC | -60 ~ 200 | |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
| Content | Unit | Standard value |
| Width | mm | 13, 19, 25,38, cut-sizes |
| Length | m | 10m |
| Color | - | Black |
| Core ID | mm | 32 |
