- Nitto 15 has an excellent volume resistivity, a high breakdown voltage and a low dissipation factor. It is totally resistant to moisture, water and chemicals.
- Nitto 15 offers excellent electrical insulation, workability and weather protection.
The product has a superior weatherability and ozone resistance and because of the linerless system a very short application time. It completely self-amalgamates in two hours
PVC Wireharness Adhesive Tapes
PVC Electrical Insulating adhesive Tapes
PVC Wireharness Protective Film
Reinforced Filament Adhesive Tapes
PVC Floor Marking Tapes
Acrylic Foam Tapes
Crepe Paper Masking Tapes
Packaging Adhesive Tapes
Anti-Skid Adhesive Tapes
Self-Fusing Rubber Tapes
PET Adhesive Tapes

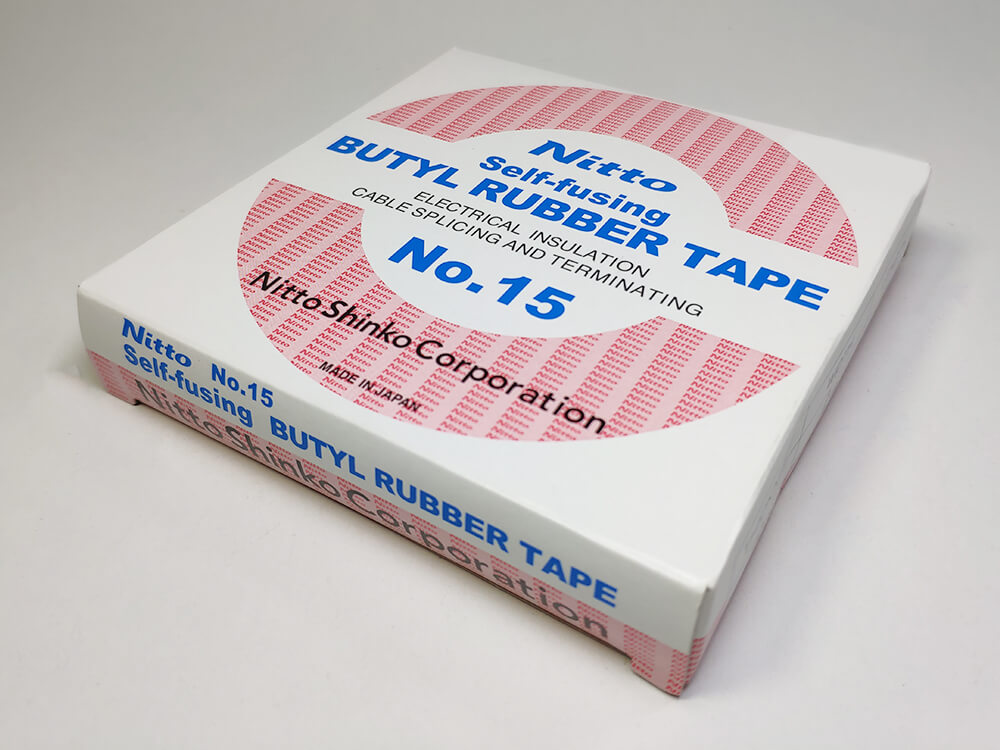

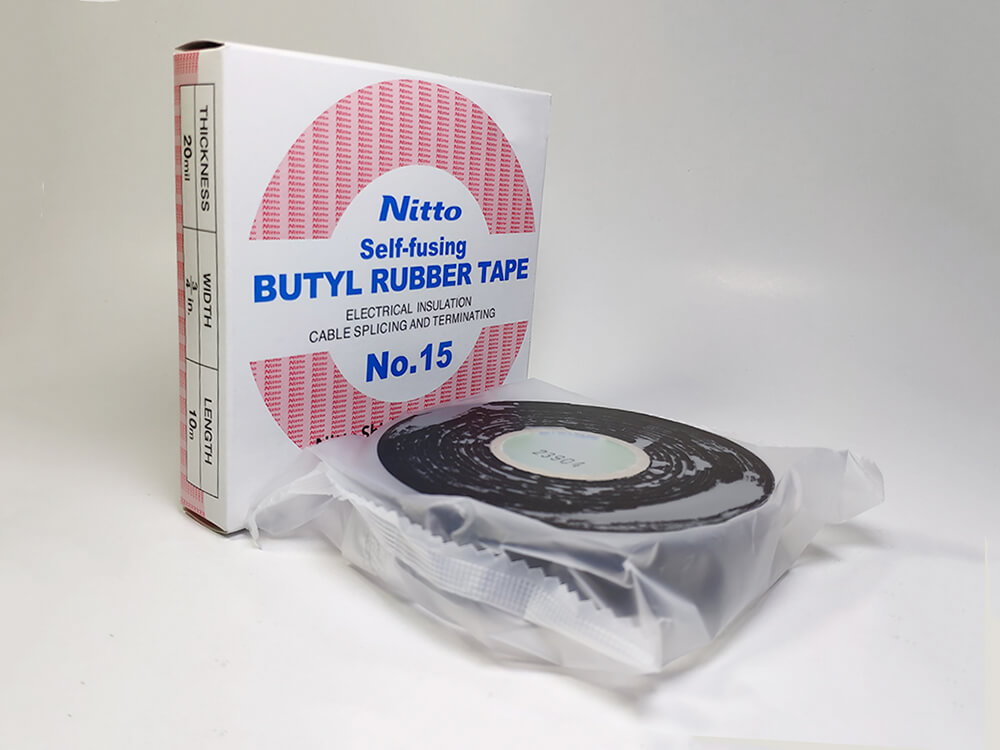

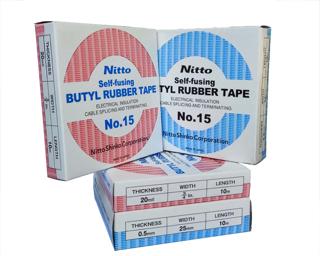

NITTO Self-Fusing Rubber Tape - N15
Code: Nitto 15
Features
Applications
- Nitto 15 can be used for termination, splicing and corrosion protection of cables. Also insulation and protection of lead shielded cables is possible
- The product is used for its waterproof sealing and corrosion protection of cables in marine and off-shore environments
Technical Data
| Content |
Unit | Standard value | |
| Thickness | mm | 0.5 | |
| Tensile strength | Normal | kg/mm2 | 0.32 |
| After heating | kg/mm2 | 0.3 | |
| Elongation | Normal | % | 550 |
| After heating | % | 570 | |
| Withstanding voltage | 10KV/1minute | OK | |
| Breakdown voltage | KV | 44 | |
| Self-fusing | - | Excellent | |
| Volume resistivity | Ωcm | 2 | |
| Di-electric strength | % | 2 x 107 | |
| Ozone resistance | - | Excellent | |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
| Content | Unit | Standard value |
| Width | mm | 19, 25, 38 |
| Length | m | 10 |
| Color | - | Black |
| Core ID | mm | 32 |
