- The tape are with good performance of wrapping anf firmness
- It is easy to tear by hand and good workability
- The ingredient of heavy metal comply with directive of RoHS
PVC Wireharness Adhesive Tapes
PVC Electrical Insulating adhesive Tapes
PVC Wireharness Protective Film
Reinforced Filament Adhesive Tapes
PVC Floor Marking Tapes
Acrylic Foam Tapes
Crepe Paper Masking Tapes
Packaging Adhesive Tapes
Anti-Skid Adhesive Tapes
Self-Fusing Rubber Tapes
PET Adhesive Tapes

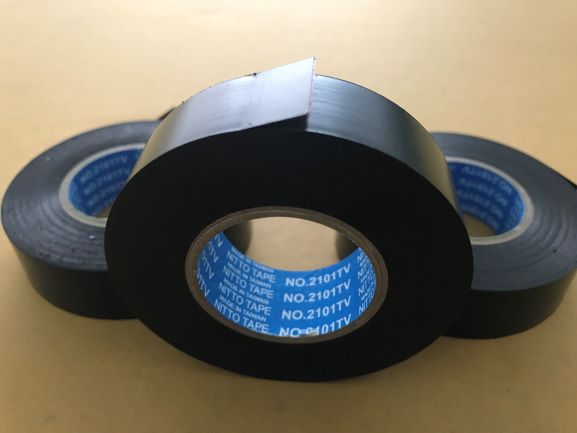

Nitto PVC Wireharness Tape - 2101TVH
Code: Nitto 2101TVH
Features
Applications
- It is good for electrical insulation
- It is suitable for wireharness wrapping
Technical Data
| Content | Unit | Standard value | |
| Thickness | mm | 0.1 | |
| Adhesion to steel |
N/19mm (gf/19mm) |
0.98 ↑ (100 ↑) |
|
| Unwinding force (low speed) |
N/19mm (gf/19mm) |
2.94 ~ 6.86 (300 ~ 700) |
|
| Tensile strength |
N/19mm (kgf/19mm) |
24.5 ↑ (2.5 ↑) |
|
| Elongation | % | 100 ↑ | |
| Volume resistivity |
Ω.cm (log Ω.cm) |
12.00 ↑ (1 x 1012 ↑) |
|
| Withstand voltage | KV | 3.5 KV/minute | |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
| Content | Unit | Standard value |
| Width | mm | 10, 15, 19, 25, 30, 48, 50 |
| Length | m | 25 |
| Color | - | BLACK |
| Core ID | mm | 32 |
