- The non-adhesive side exhibits excellent features of polytetrafluoroethylene (PTFE) such as electrical properties, excellent resistance to heat, weather, chemical and non-adhesiveness
- Superior to tensile strength
- Excellent flame retardant

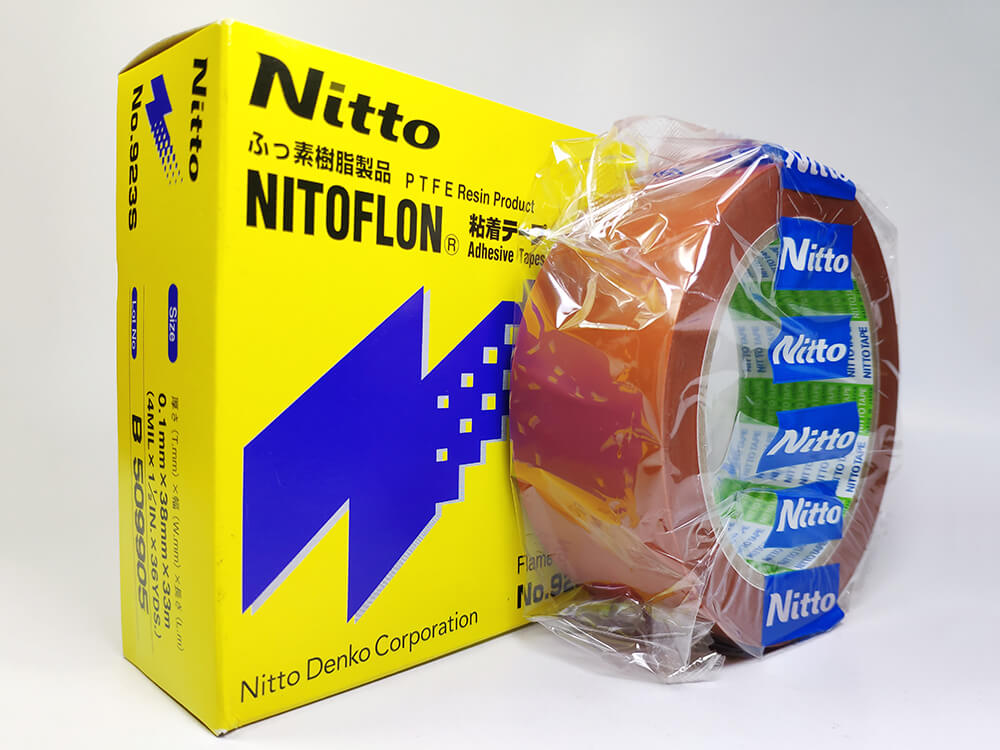

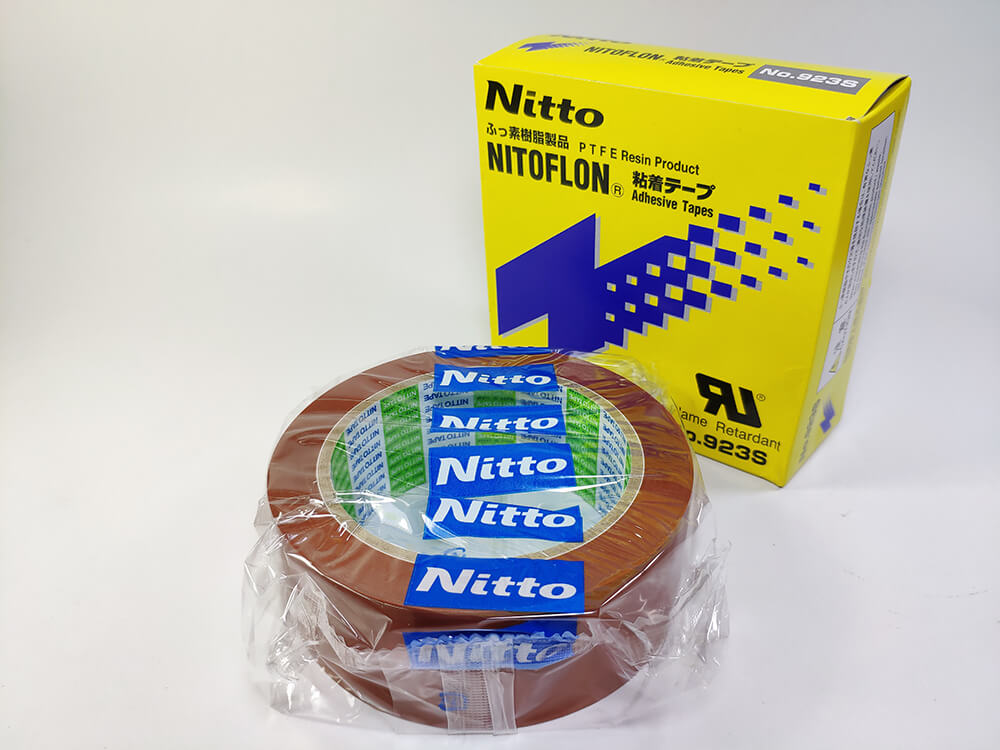

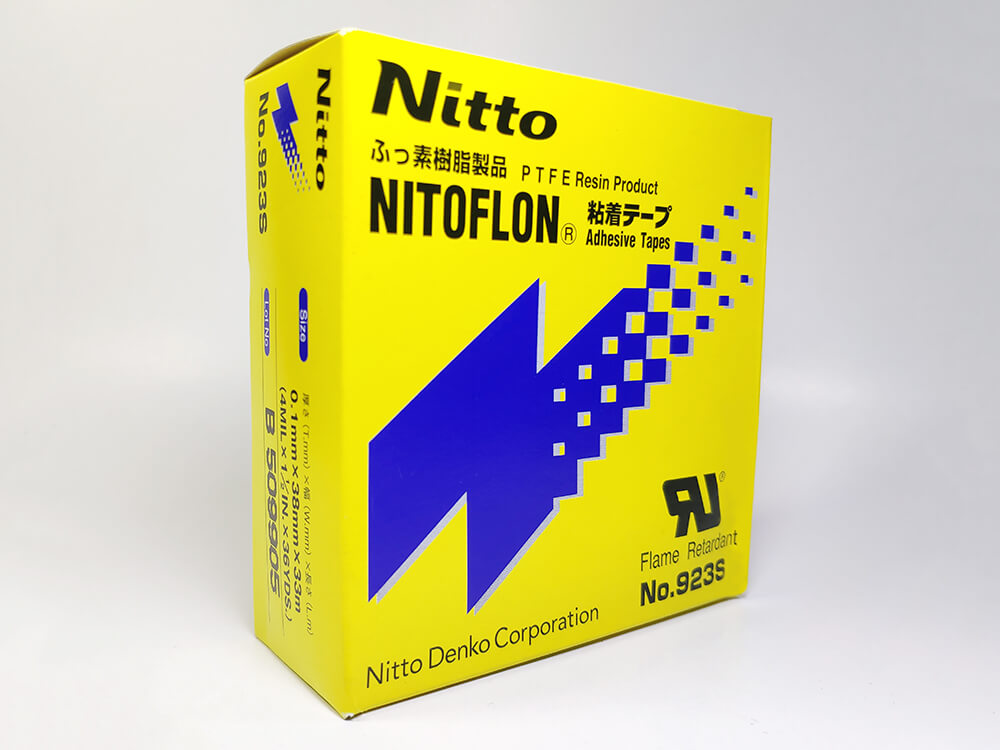

Nitto Heat-resistant Tape - 923S
Code: Nitto 923S
Features
Applications
- For roll wrapping of polyethylene laminators (Suitable for long continuous use as the tape superior durability and machenical strength)
- For endless belt of polyethylene laminators (Time for changing tapeupon dimesional change of laminated products can be shortened by making double layered endless belt by bonding the adhesive sides of No.923S together)
- For insulation of coil as a class H insulating material
- Can be laminated with metals, plastics and ceramics as general sliding materials
Technical Data
| Content | Unit | Standard value |
| Thickness | mm | 0.1 |
| Tensile strength | N/19mm | 120 |
| Elongation | % | 50 |
| Peeling strength (Stainless steel) | N/19mm | 6.5 |
| Unwiding force | N/19mm | 2.1 |
| Breakdown voltage | KV | 11 |
| Flame resistance | - | UL510 (File No.E34833) |
| Operating temperature | oC | -60 ~ 200 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
| Content | Unit | Standard value |
| Width | mm | 38, 50 |
| Length | m | 33 |
| Color | - | Red |
| Core ID | mm | 76 |
