Code: NANOVI E11

Features

Composed of PVC film and aggressive sensitive natural rubber adhesive
Excellent conform ability and elongation
It's easy to tear by hands, and good workability

Applications

Ideal for wrapping electrical wire
The recommended application method is with a 50% overlap and not to over stretch
when tearing off

Technical Data

Content	Unit	Standard value
Thickness	mm	0.11
Adhesion to steel	kgf/19mm	0.25 ↑
Adhesion to backing	kgf/19mm	0.3 ↑
Tensile strength	kgf/19mm	2.7 ↑
Elongation	%	150 ↑
Breakdown voltage	KV	4.5
Applicable temperature	^oC	0 ~ 80

Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy

Other properties

Content	Unit	Standard value
Width	mm	10, 18, 19, 25, 50, other cut-sizes
Length	yds	5, 10, 20
Color	-	BLACK, WHITE, RED, YELLOW, GREEN, BLUE
Core ID	mm	32, 38

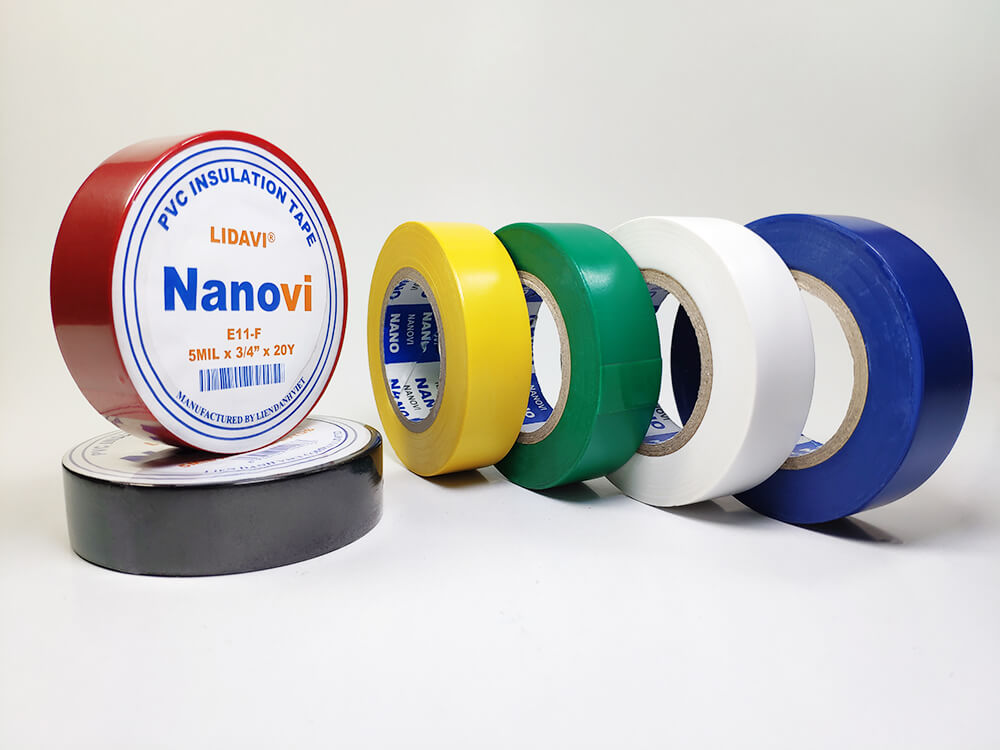

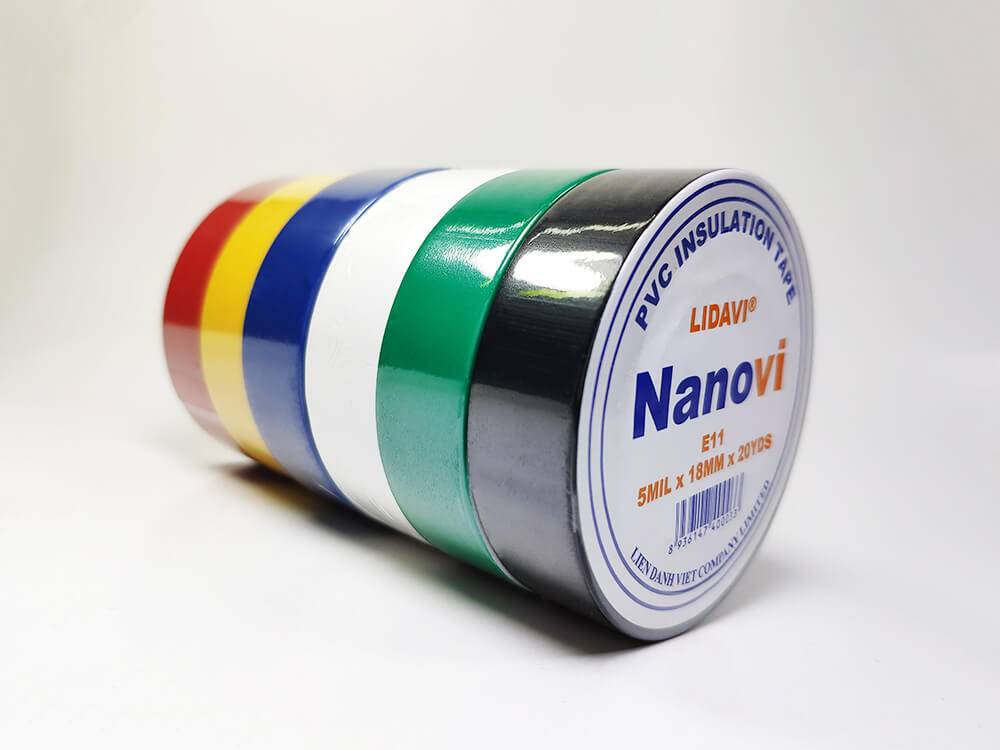

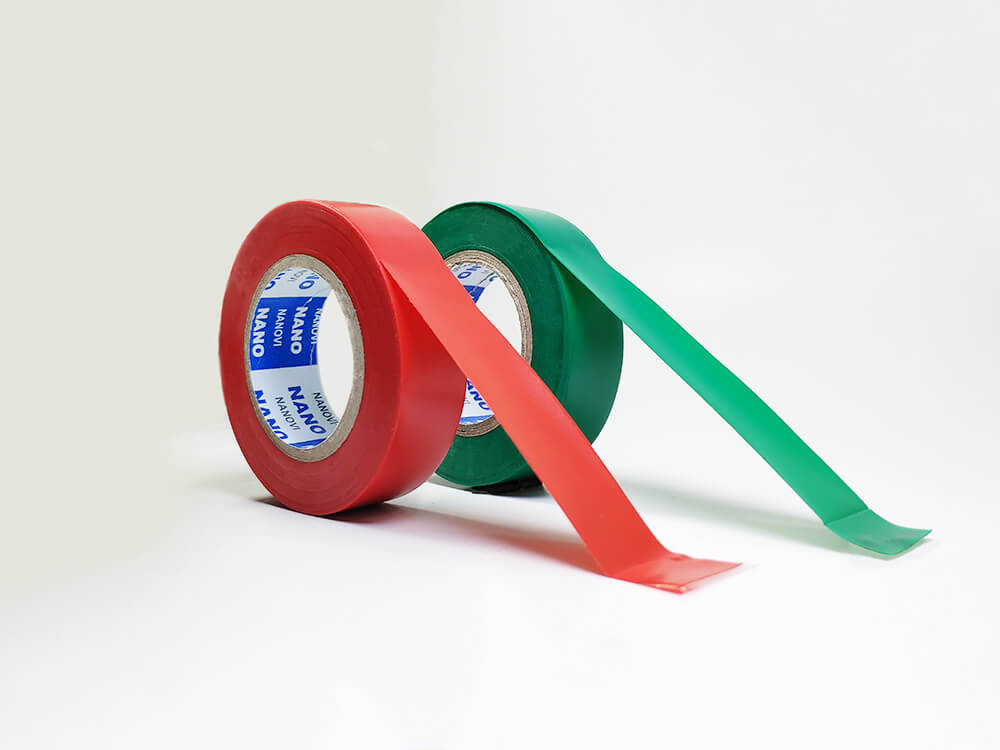

NANOVI PVC Electrical Tape - E11
