- 3:1 shrink ratio
- Flame retardant
- Resistance to weathering, moisture, contamination and adverse environmental conditions
- Heat indicating lines
- Adhesive liner provides complete environmental protection and insulation
- Resist common fluids and solvents
- Continuous operating temperature: -45oC ~ 110oC
- Shrinking temperature: 125oC
- Color: Black

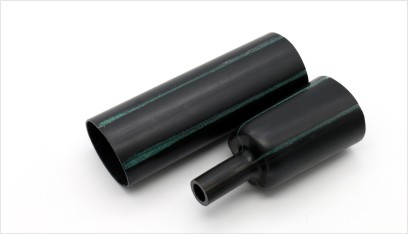

Medium Wall Adhesive-Lined Heat Variable Heat-Shrink Tubing
Code: LIDAVI-SBRSTV
Features
Applications
Heat-shrink tubing and adhesive-liner combination that established the CATV industry standard for splice and connector protection
Technical Data
|
Property |
Unit |
Standard |
Value |
Test Method |
|
Tensile Strength |
MPa |
≥ 14 |
15 |
ASTM D 2671 |
|
Elongation |
% |
≥ 300 |
450 |
ASTM D 2671 |
|
Tensile Strength after aging |
MPa |
≥ 7.3 |
8.5 |
UL224 158oC x168hr |
|
Elongation after aging |
% |
≥ 200 |
350 |
UL224 158oC x168hr |
|
Dielectric Strength |
K.V/mm |
≥ 15 |
17.5 |
IEC 60243 |
|
Volume Resistivity |
Ω.cm |
≥ 1 x 1014 |
2.5 x 1014 |
IEC 60093 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
|
Size (mm) |
Expanded ID Min (mm) |
After Recovery (mm) |
Packing (M/pc) |
|||
|
ID |
Jacket Thickness |
Adhesive Thickness |
Total Wall Thickness |
|||
|
10.2/3.8 |
10.2 |
3.8 |
1.40 ± 0.20 |
0.50 ± 0.10 |
1.90 ± 0.25 |
1.22 |
|
19.0/5.6 |
19.0 |
5.6 |
1.80 ± 0.20 |
0.60 ± 0.15 |
2.40 ± 0.30 |
1.22 |
|
28.0/6.0 |
28.0 |
6.0 |
2.40 ± 0.30 |
0.95 ± 0.20 |
3.30 ± 0.35 |
1.22 |
|
33.0/8.0 |
33.0 |
8.0 |
2.50 ± 0.30 |
0.80 ± 0.15 |
3.30 ± 0.35 |
1.22 |
|
38.1/12.0 |
38.1 |
12.0 |
2.40 ± 0.30 |
0.80 ± 0.15 |
3.30 ± 0.35 |
1.22 |
|
43.2/12.7 |
43.2 |
12.7 |
2.40 ± 0.30 |
0.80 ± 0.15 |
3.30 ± 0.35 |
1.22 |
|
55.0/16.0 |
55.0 |
16.0 |
2.40 ± 0.30 |
0.80 ± 0.15 |
3.30 ± 0.35 |
1.22 |
|
70.0/25.4 |
70.0 |
25.4 |
2.80 ± 0.30 |
0.60 ± 0.15 |
3.40 ± 0.40 |
1.22 |
