- 3:1 shrink ratio
- Non-flame retardant
- Seal and protect cable splices and terminations
- Rugged mechanical protection
- Complete moisture sealing
- Strain relief for dedicate wire connections
- High resistance to impact and abrasion
- Thermoplastic adhesive liner for complete environmental protection and insulation
- Continuous operating temperature: -45oC ~ 110oC
- Shrinking temperature: 125oC
- Color: Black

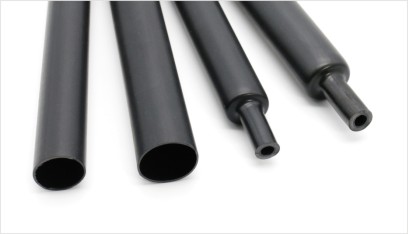

Medium Wall Adhesive-Lined Cross-linked Polyolefin Heat-Shrink Tubing
Code: LIDAVI-SBRSM-NF
Features
Applications
Medium wall adhesive-lined heat-shrink tubing is suitable for a variety of low voltage electrical and mechanical application, where lighter weight and greater flexibility are important
Technical Data
|
Property |
Unit |
Standard |
Value |
Test Method |
|
Tensile Strength |
MPa |
≥ 14 |
15 |
ASTM D 2671 |
|
Elongation |
% |
≥ 400 |
450 |
ASTM D 2671 |
|
Tensile Strength after aging |
MPa |
≥ 12 |
12.5 |
UL224 158oC x168hr |
|
Elongation after aging |
% |
≥ 300 |
350 |
UL224 158oC x168hr |
|
Dielectric Strength |
K.V/mm |
≥ 15 |
17.5 |
IEC 60243 |
|
Volume Resistivity |
Ω.cm |
≥ 1 x 1014 |
2.5 x 1014 |
IEC 60093 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
|
Size (mm) |
Expanded ID Min (mm) |
After Recovery (mm) |
Packing (M/pc) |
|||
|
ID |
Jacket Thickness |
Adhesive Thickness |
Total Wall Thickness |
|||
|
6.0/2.0 |
6.0 |
2.0 |
1.40 ± 0.20 |
0.45 ± 0.10 |
1.85 ± 0.25 |
1.22 |
|
8.0/2.0 |
8.0 |
2.0 |
1.40 ± 0.20 |
0.45 ± 0.10 |
1.85 ± 0.25 |
1.22 |
|
10.2/3.0 |
10.2 |
3.0 |
1.40 ± 0.20 |
0.50 ± 0.10 |
1.90 ± 0.25 |
1.22 |
|
12.0/3.0 |
12.0 |
3.0 |
1.40 ± 0.20 |
0.50 ± 0.10 |
1.90 ± 0.25 |
1.22 |
|
16.0/5.0 |
16.0 |
5.0 |
1.50 ± 0.20 |
0.55 ± 0.15 |
2.15 ± 0.30 |
1.22 |
|
19.1/5.6 |
19.1 |
5.6 |
1.80 ± 0.20 |
0.60 ± 0.15 |
2.40 ± 0.30 |
1.22 |
|
22.0/6.0 |
22.0 |
6.0 |
2.00 ± 0.30 |
0.60 ± 0.15 |
2.60 ± 0.30 |
1.22 |
|
25.0/8.0 |
25.0 |
8.0 |
2.00 ± 0.30 |
0.60 ± 0.15 |
2.70 ± 0.30 |
1.22 |
|
28.0/6.0 |
28.0 |
8.0 |
2.00 ± 0.30 |
0.80 ± 0.15 |
3.30 ± 0.35 |
1.22 |
|
33.0/8.0 |
35.0 |
0.0 |
2.00 ± 0.30 |
0.80 ± 0.15 |
3.30 ± 0.35 |
1.22 |
|
38.1/12.0 |
38.1 |
12.0 |
2.00 ± 0.30 |
0.80 ± 0.15 |
3.30 ± 0.35 |
1.22 |
|
43.2/12.7 |
43.2 |
12.7 |
2.00 ± 0.30 |
0.80 ± 0.15 |
3.30 ± 0.35 |
1.22 |
|
55.0/16.0 |
55.0 |
16.0 |
2.00 ± 0.30 |
0.80 ± 0.15 |
3.30 ± 0.35 |
1.22 |
|
65.0/19.0 |
63.0 |
19.0 |
2.00 ± 0.30 |
0.80 ± 0.15 |
3.30 ± 0.35 |
1.22 |
|
75.0/22.0 |
75.0 |
22.0 |
2.00 ± 0.30 |
0.80 ± 0.15 |
3.70 ± 0.40 |
1.22 |
|
85.0/25.0 |
85.0 |
25.0 |
2.00 ± 0.30 |
0.80 ± 0.15 |
3.70 ± 0.40 |
1.22 |
|
95.0/30.0 |
95.0 |
30.0 |
2.00 ± 0.30 |
0.80 ± 0.15 |
3.80 ± 0.40 |
1.22 |
|
115.0/34.0 |
115.0 |
34.0 |
2.00 ± 0.30 |
0.80 ± 0.15 |
3.80 ± 0.40 |
1.22 |
|
140.0/42.0 |
140.0 |
42.0 |
2.00 ± 0.30 |
0.80 ± 0.15 |
3.80 ± 0.40 |
1.22 |
|
160.0/50.0 |
160.0 |
50.0 |
2.00 ± 0.30 |
0.80 ± 0.15 |
3.90 ± 0.40 |
1.22 |
|
180.0/65.0 |
180.0 |
65.0 |
2.00 ± 0.30 |
0.80 ± 0.15 |
3.90 ± 0.40 |
1.00 |
|
200.0/69.0 |
200.0 |
69.0 |
2.00 ± 0.30 |
0.80 ± 0.15 |
3.90 ± 0.40 |
1.00 |
|
230.0/78.0 |
230.0 |
78.0 |
2.00 ± 0.30 |
0.80 ± 0.15 |
3.90 ± 0.40 |
1.00 |
