A thin premium grade plasticized PVC film coated with an aggressive rubber bases adhesive will contribute good features:

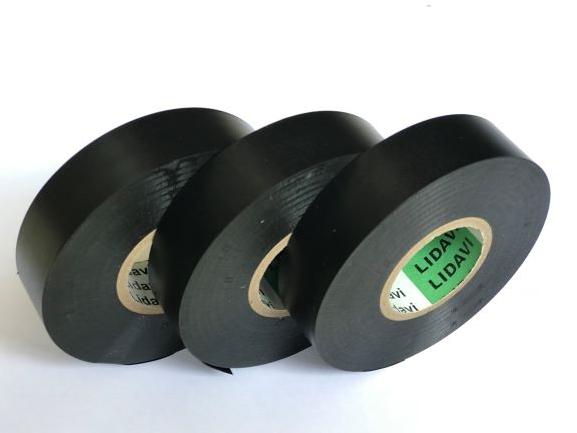

PVC electrical wireharness tape is designed for wrapping wire, cable and harness. It has good electrical property, viscosity and flexibility. It is also anti-chemical corrosion and moisture proof. It contributes the good performance when apply 50% overlap wrapping. Do not stretch the last layer to avoid flagging
|
Content |
Unit |
FRE Series |
||||
|
Backing material |
- |
Polyvinyl chloride film |
||||
|
Adhesive |
- |
Rubber base |
||||
|
Thickness |
mm |
0.11 |
0.13 |
0.15 |
0.18 |
0.2 |
|
Tensile strength |
N/cm |
18 |
20 |
25 |
30 |
30 |
|
Elongation |
% |
190 |
200 |
220 |
250 |
250 |
|
Adhesion to steel |
N/cm |
1.5 |
1.5 |
1.6 |
1.8 |
1.8 |
|
Adhesion to backing |
N/cm |
1.5 |
1.5 |
1.6 |
1.8 |
1.8 |
|
Dielectric strength |
V |
600 |
600 |
600 |
600 |
600 |
|
Temperature resistance |
o C |
80 |
80 |
80 |
80 |
80 |
|
Flame retardance |
S |
<2 |
<2 |
<2 |
<2 |
<2 |
|
Lead, Cadmium |
ppm |
2 |
||||
|
Mercury |
ppm |
2 |
||||
|
Chromium |
ppm |
8 |
||||
|
Polybrominated biphenyl |
ppm |
5 |
||||
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
|
Thickness mm |
Width mm |
Length m |
Color |
ID Core mm |
|
0.11 |
10 15 19 25 requested cut-sizes |
20, 25, 30 |
Black, Brown, Blue, Green, Grey, Orange, Pink, Red, Sky Blue, Transparent, Violet, White, Yellow |
32, 38 |
|
0.13 |
20 |
|||
|
0.15 |
10, 20 |
|||
|
0.18 |
10, 20,40 |
|||
|
0.20 |
10, 20,40 |
