- Offers the excellent electrical insulation
- Good withstand voltage and softness
- It is suitable for High-speed machine operation and pipeline protection
- Compliance with directive of RoHS and REACH
PVC Wireharness Adhesive Tapes
PVC Electrical Insulating adhesive Tapes
PVC Wireharness Protective Film
Reinforced Filament Adhesive Tapes
PVC Floor Marking Tapes
Acrylic Foam Tapes
Crepe Paper Masking Tapes
Packaging Adhesive Tapes
Anti-Skid Adhesive Tapes
Self-Fusing Rubber Tapes
PET Adhesive Tapes

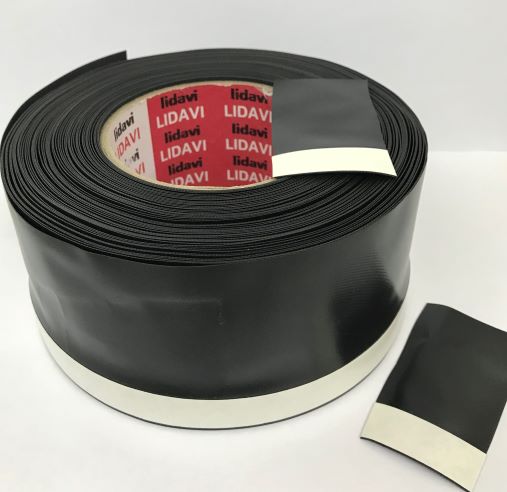

LIDAVI PVC Protective Film
Code: LIDAVI PVC PROTECTIVE SHEET
Features
Applications
- It is suitable for wireharness wrapping
- For electrical insulation use
Technical Data
| Content | Unit | Standard value | ||
| 280FRO | 300FRO | 380FRO | ||
| Thickness | mm | 0.28 | 0.3 | 0.38 |
| Tensile sttrength | Kgf/25mm | 6.5 | 6.5 | 7.0 |
| Elongation | % | 180 | 180 | 200 |
| Breakdown voltage | KV | 6.5 ↑ | 7.0 ↑ | 7.0 ↑ |
| Flame retardant | - | GB/T 15903-1995 | ||
| Temperature range | oC | 0 ~ 80 | ||
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
| Content | Unit | Standard value |
| Width | mm | 60, 70, 100, 110, requested cut-sizes |
| Length | m | 20, requested cut-sizes |
| Color | - | BLACK |
| Core ID | mm | 76 |
