Code: G11

Features

G11 is a thin premium grade plasticized polyvinyl chloride film coated with an aggressive rubber resin adhesive with good characteristic It is highly conformable and unaffected by most chemicals and moisture

Applications

It is specially designed for wire harness and other electrical insulating application, wrapped wires with a half lap is better, the last layer should be no tension to prevent flagging

Technical Data

Content	Unit	Standard value
Thickness	mm	0.11
Adhesion to steel	N/cm	1.8 ↑
Adhesion to backing	N/cm	1.8 ↑
Tensile stregnth	N/cm	18 ↑
Elongation	%	150
Breakdown voltage	KV	4.5
Applicable temperature	oC	0 ~ 80

Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy

Other properties

Content	Unit	Standard value
Width	mm	18, 19, 24, 48, other cut-sizes
Length	Yds	10, 20

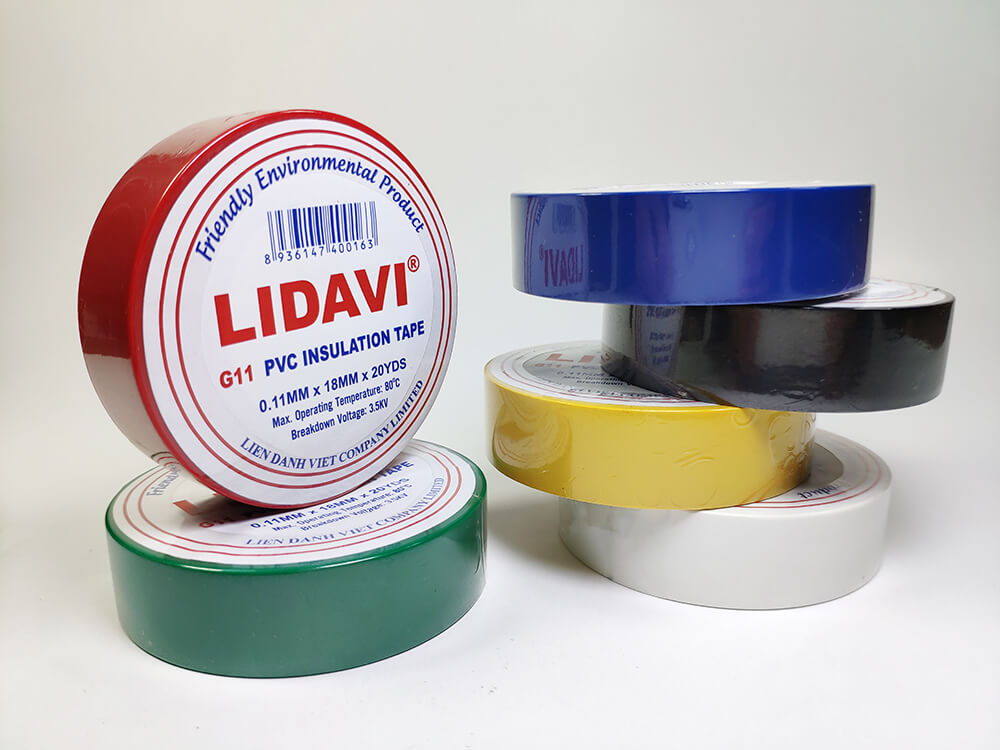

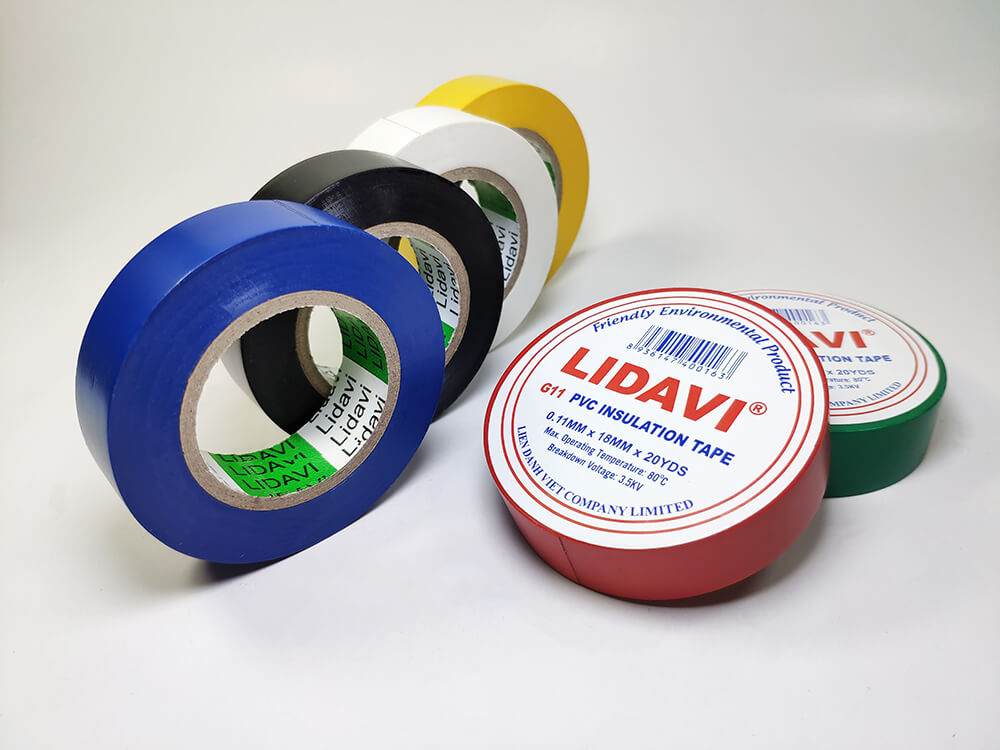

Color	-	BLACK, WHITE, RED, YELLOW, BLUE, GREEN
Core ID	mm	38

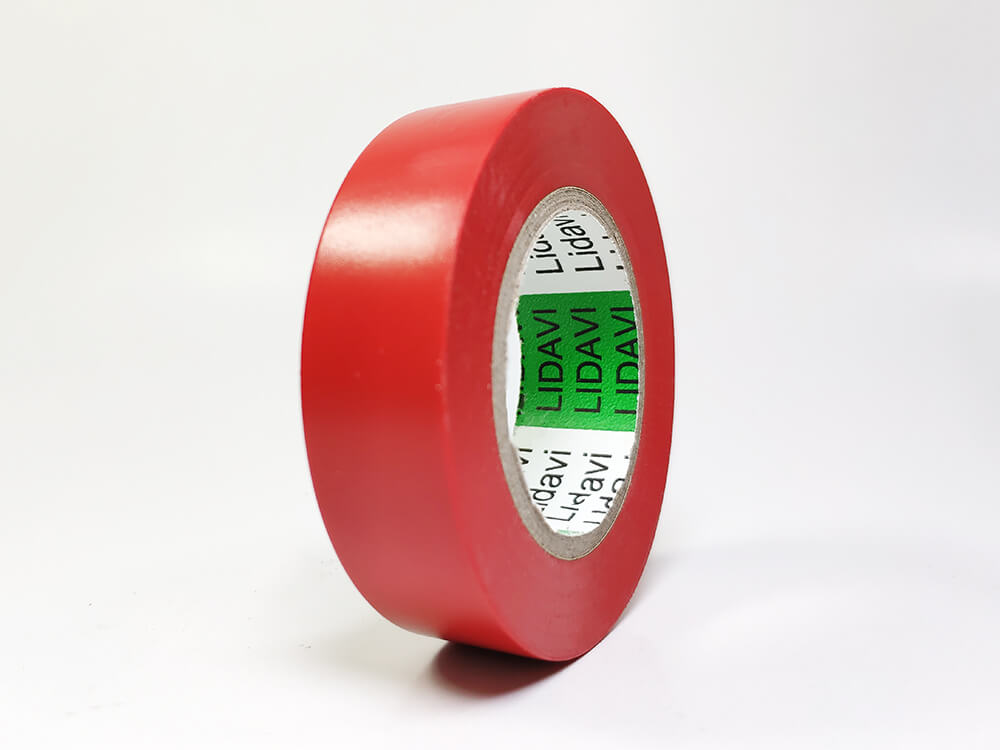

LIDAVI PVC Electrical Tape - G11
