Code: 13F

Features

Excellent high temperature adhesion and holding power.
Cohesion is controlled so that it has sufficient elongation to mask around compound curves without breaking , still smooth enough to minimize abrasion to the masker’s thumb.
Strips cleanly and easily after high temperature bakes.
Performs well with various surfaces: steel, primed steel and the full spectrum of acrylic automotive finishes currently in use.
Stain resistance free

Applications

Ideal for body protection of automotive painting.
Fixing electronic components on capacitor and all sorts of subassembly processing

Technical Data

Content	Unit	Standard value
Backing	-	crepe paper
Thickness	mm	0.17
Adhesion to steel	Kgf/25mm	0.8 ↑
Tensile strength	Kgf/25mm	7.0↑
Elongation at break	%	5 ↑
Heat resistance	^oC	154^oC in 1 hour

Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy

Other properties

Content	Unit	Standard value

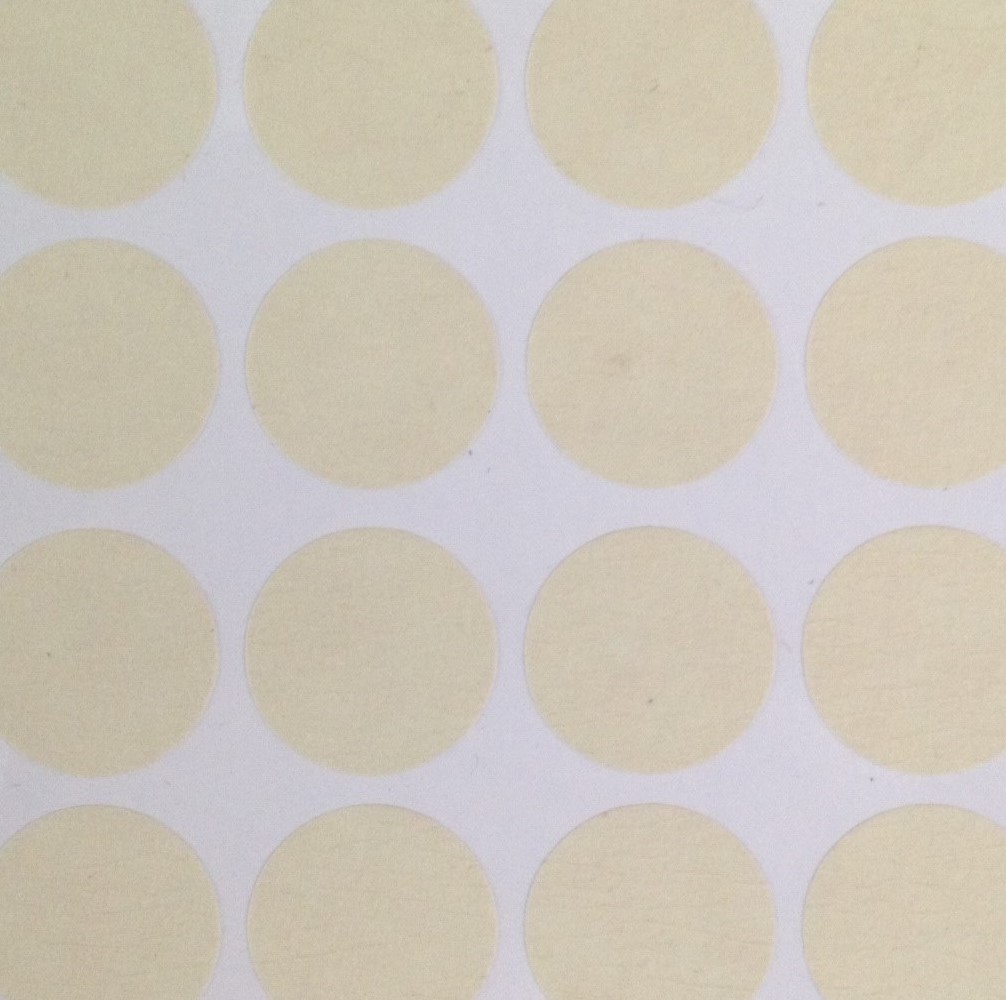

Width	mm	5, 10, 12, 16, 19, 25, other cut-sizes, die-cut shapes
Length	Yds	50
Color	-	Light yellow
Core ID	mm	76

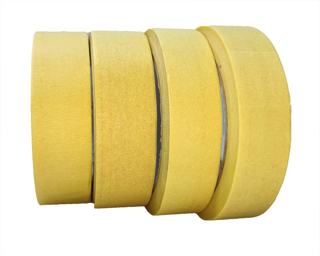

High Temperature Paper Masking Tape
