- 4:1 shrink ratio
- Halogen free
- Superior sealing against water, moisture or other contaminates
- Inner adhesive bonds to plastics, steel and polyethylene
- Continuous operating temperature: -45oC ~ 125oC
- Shrink temperature: 125oC
- Color: Black

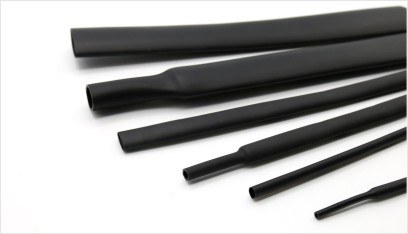

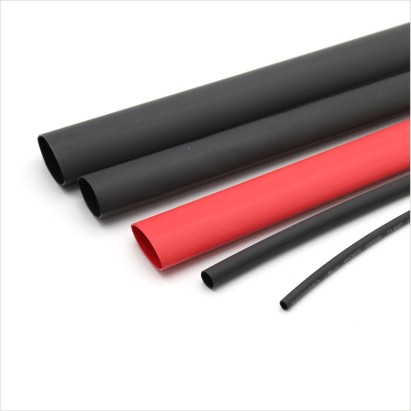

High Shrink Ratio, Semi-rigid Dual Wall Adhesive-Lined Cross-Linked Polyolefin Tubing
Code: LIDAVI-SBRS-(4X)G
Features
Applications
Adhesive Semi-rigid, dual wall heat shrink tubing designed to seal and environmentally protect splice in the most
Technical Data
|
Property |
Unit |
Standard |
Value |
Test Method |
|
Tensile Strength |
MPa |
≥ 10.4 |
11.5 |
ASTM D 2671 |
|
Elongation |
% |
≥ 300 |
450 |
ASTM D 2671 |
|
Tensile Strength after aging |
MPa |
≥ 7.3 |
8.5 |
UL224 158oC x168hr |
|
Elongation after aging |
% |
≥ 200 |
350 |
UL224 158oC x168hr |
|
Flammability |
S |
≤ 30 |
≤ 30 |
ASTM D 2671 B |
|
Dielectric Strength |
K.V/mm |
≥ 15 |
17.5 |
IEC 60243 |
|
Volume Resistivity |
Ω.cm |
≥ 1 x 1014 |
2.5 x 1014 |
IEC 60093 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
|
Size (mm) |
As Supplied (mm) |
After Recovery |
Packing Length (m/reel) |
||
|
ID (mm) |
Total Wall Thickness (mm) |
Adhesive Thickness (mm) |
|||
|
4.0 |
4.0 |
0.95 |
1.45 ± 0.20 |
0.50 ± 0.10 |
200 |
|
6.0 |
6.0 |
1.27 |
1.70 ± 0.20 |
0.60 ± 0.10 |
100 |
|
8.0 |
8.0 |
1.65 |
2.00 ± 0.20 |
0.75 ± 0.10 |
100 |
|
12.0 |
12.0 |
2.41 |
2.45 ± 0.20 |
1.20 ± 0.20 |
1.22 or 25m/reel |
|
18.0 |
18.0 |
4.45 |
2.60 ± 0.20 |
1.40 ± 0.20 |
1.22 or 25m/reel |
