- 4:1 shrink ratio
- Halogen free
- Super sealing against water, moisture or other contaminates
- Continuous operating temperature:-45℃-125℃
- Shrink Temperature:125℃

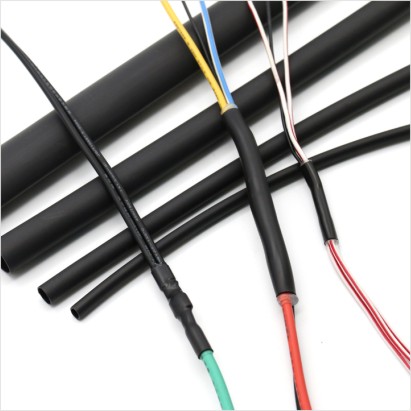

High Shrink Ratio, Semi-rigid Dual Wall Adhesive-Lined Cross-Linked Polyolefin Tubing
Code: SBRS-(4X)GR
Features
Applications
Adhesive Semi-rigid, dual wall heat shrink tubing designed to seal& environmentally protect splice in the most.
Technical Data
| Property | Test method | Standard | Typical Performance |
| Tensile strength(MPa) | ASTM D 2671 | ≥10.4 | 11.5 |
| Elongation(%) | ASTM D 2671 | ≥300 | 450 |
| Tensile strength after aging(MPa) | UL224 158℃*168hr | ≥7.3 | 8.5 |
| Elongation after aging (%) | UL224 158℃*168hr | ≥200 | 350 |
| Dielectric strength(kV/mm) | IEC 60243 | ≥15 | 17.5 |
| Volume resistivity(Ω.cm) | IEC 60093 | ≥1*1014 | 2.5*1014 |
| Adhesive Property | Test method | Standard Performance |
| Water Absorption | ASTM D 570 | ＜0.2% |
| Softening Point(℃) | ASTM E 28 | 90±5 |
| Strength of pearing (PE) | ASTM D 1000 | 120N/25mm |
| Strength of pearing (AL) | ASTM D 1000 | 80N/25mm |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
| Size | Expanded | After Recovery | Standard Package | |||
| Inch | mm | Internal Diameter (mm) | Internal Diameter (mm) | Total Wall Thickness (mm) | Adhesive Thickness (mm) | Spool Length M/spool |
| 2/13 | 4 | 4.0 | 0.95 | 1.40±0.30 | 060±0.10 | 200 |
| 1/4 | 6 | 6.0 | 1.27 | 1.70±0.30 | 0.80±0.10 | 100 |
| 5/16 | 8 | 8.0 | 1.65 | 2.00±0.30 | 0.95±0.10 | 100 |
| 1/2 | 12 | 12.0 | 2.41 | 2.45±0.40 | 1.20±0.20 | 1.22 OR 25M/Roll |
| 3/4 | 18 | 18.0 | 4.45 | 2.60±0.40 | 1.40±0.20 | 1.22 OR 25M/Roll |
