- Shrink ratio: 1.7:1
- High performance for anti-corrosion (acid/alkali resistance, chemical reagent, oil-proof)
- High voltage resistance
- High pressure resistance
- Continuous operating temperature: -65oC ~ 200oC
- Shrink temperature: ≥ 350oC
- Color: Clear

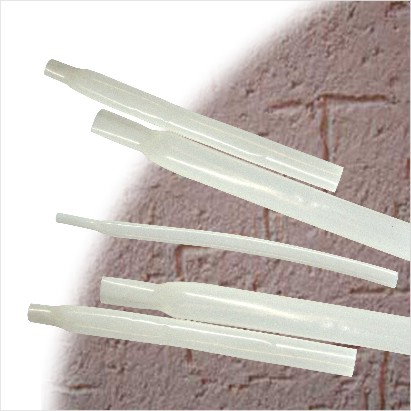

Heat Shrink Teflon Tubing
Code: LIDAVI-RSFRTEF
Features
Applications
Heat Shrink Teflon Tubing can be widely used in science and technology field such as chemistry, mechanical industries, astronautic industry, vehicles, transformers, communications, etc.
Technical Data
|
Property |
Unit |
Standard |
Test Method |
|
Tensile Strength |
MPa |
19 |
ASTM D 2671 |
|
Elongation |
% |
200 |
ASTM D 2671 |
|
Cold impact (-65oC) |
== |
No cracking |
ASTM D 2671 Method C |
|
Flammability |
S |
VW-1 |
ASTM D 2671 |
|
Dielectric Strength |
K.V/mm |
26 |
VDE 0303 Part 2 |
|
Volume Resistivity |
Ω.cm |
≥ 1 x 1014 |
VDE 0303 Part 2 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
|
Size (mm) |
Expanded |
Recovered |
Packing (m/reel) |
Shape |
||
|
ID (mm) |
Wall Thickness (mm) |
ID (mm) |
Wall Thickness (mm) |
|||
|
1.0 |
1.0 ± 0.2 |
0.12 ± 0.15 |
≤0.6 |
0.20 ± 0.05 |
200 |
Round |
|
1.5 |
1.5 ± 0.2 |
0.12 ± 0.15 |
≤0.9 |
0.20 ± 0.05 |
200 |
Round |
|
2.0 |
2.0 ± 0.2 |
0.12 ± 0.15 |
≤1.3 |
0.20 ± 0.05 |
200 |
Round |
|
2.5 |
2.5 ± 0.2 |
0.12 ± 0.15 |
≤1.5 |
0.20 ± 0.05 |
200 |
Round |
|
3.0 |
3.0 ± 0.2 |
0.12 ± 0.15 |
≤1.8 |
0.20 ± 0.05 |
200 |
Round |
|
3.5 |
3.5 ± 0.2 |
0.12 ± 0.15 |
≤2.0 |
0.20 ± 0.05 |
100 |
Round |
|
4.0 |
4.0 ± 0.3 |
0.15 ± 0.15 |
≤2.5 |
0.25 ± 0.05 |
100 |
Round |
|
4.5 |
4.5 ± 0.3 |
0.15 ± 0.15 |
≤2.8 |
0.25 ± 0.05 |
100 |
Round |
|
5.0 |
5.0 ± 0.3 |
0.15 ± 0.15 |
≤3.0 |
0.25 ± 0.05 |
100 |
Round |
|
6.0 |
6.0 ± 0.3 |
0.15 ± 0.15 |
≤3.8 |
0.25 ± 0.05 |
100 |
Round |
|
7.0 |
7.0 ± 0.3 |
0.15 ± 0.15 |
≤4.0 |
0.25 ± 0.05 |
100 |
Round |
|
8.0 |
8.0 ± 0.3 |
0.15 ± 0.15 |
≤4.8 |
0.30 ± 0.05 |
1 m/pc |
Flat |
|
9.0 |
9.0 ± 0.3 |
0.20 ± 0.15 |
≤5.0 |
0.30 ± 0.05 |
1 m/pc |
Flat |
|
10.0 |
10.0 ± 0.3 |
0.20 ± 0.15 |
≤5.8 |
0.30 ± 0.05 |
1 m/pc |
Flat |
|
11.0 |
11.0 ± 0.3 |
0.20 ± 0.15 |
≤6.4 |
0.30 ± 0.05 |
1 m/pc |
Flat |
|
12.0 |
12.0 ± 0.3 |
0.20 ± 0.15 |
≤7.0 |
0.30 ± 0.05 |
1 m/pc |
Flat |
|
13.0 |
13.0 ± 0.3 |
0.22 ± 0.15 |
≤7.5 |
0.30 ± 0.05 |
1 m/pc |
Flat |
|
14.0 |
14.0 ± 0.3 |
0.22 ± 0.15 |
≤8.0 |
0.30 ± 0.05 |
1 m/pc |
Flat |
