Standard doctor blade is manufacturered by imported highly refined steel strip. With a constant thickness of lamella tip, the doctor blade can guarantee the printing effect completely identical. The uniqe shap design and polishing technique provide a constant contact surface with the cylinder; oviously enhance blade durability, avoid print waste

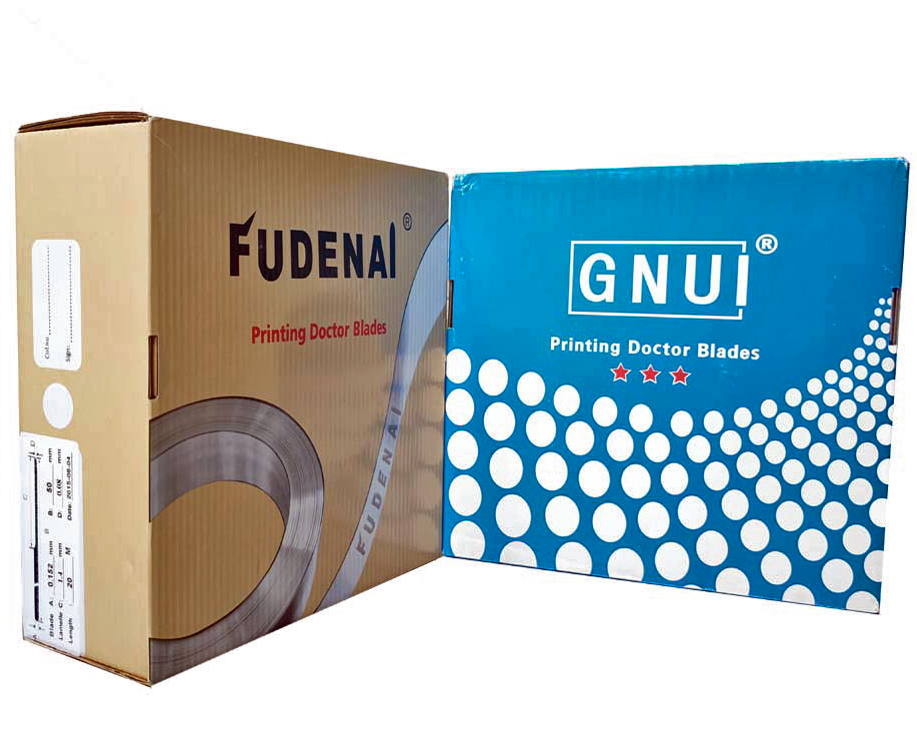

GNUI Doctor Blades
Code: GNUI Series
Features
Applications
- GNUI with a moderate hardness, Standard doctor blade (2030N/600HV) is as half as that of the gravure cylinder. Too hard, would decrease the durability of the cylinder. Too soft, would not obtain a good printing effect and would reduce the blade life.
- GNUI standard doctor blade apply to all type of flexo printing machine (wide web printing, label printing, corrugated pre-print). Base on its unique manufacture technique, the blade wear to a minimum and enhance the anilox roller life.
Technical Data
| Content | Value |
| Tensile strength | 2030 N/mm2 |
| Hardness | 600 HV ± 15 |
| Thickness | 0.152mm, 0.203mm |
| Tip thickness of edge | 0.075nn ~0.125mm |
| Tip width of edge | 1.3mm ~ 1.7mm |
Other properties
|
Code (T 0.15mm) |
Description (Plastic box) |
Code (T 0.2mm) |
Description (Plastic box) |
| GNUI1520 | 0.15mm x 20mm x 100m | GNUI2020 | 0.2mm x 20mm x 100m |
| GNUI1530 | 0.15mm x 30mm x 100m | GNUI2030 | 0.2mm x 30mm x 100m |
| GNUI1535 | 0.15mm x 35mm x 100m | GNUI2035 | 0.2mm x 35mm x 100m |
| GNUI1540 | 0.15mm x 40mm x 100m | GNUI2040 | 0.2mm x 40mm x 100m |
| GNUI1550 | 0.15mm x 50mm x 100m | GNUI2050 | 0.2mm x 50mm x 100m |
| GNUI1560 | 0.15mm x 60mm x 100m | GNUI2060 | 0.2mm x 60mm x 100m |
