- 3:1 shrink ratio
- Low longitudinal shrinkage
- Thick adhesive layer bonding to variety of plastics, rubber and metal forms an effective barrier against fluid and moisture
- Flexible
- Continuous operating temperature: -45oC ~ 125oC
- Min Shrink temperature: 110oC
- Color: Black

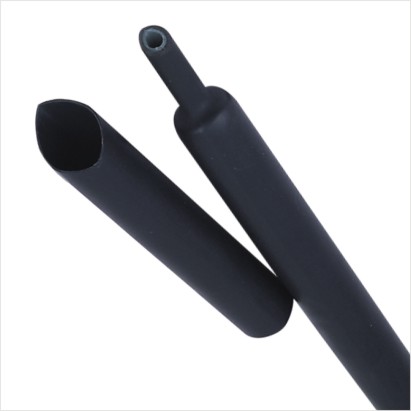

Flexible, Thin Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing
Code: LIDAVI-SBRS-(3X)GLW
Features
Applications
Flexible, thin Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing is manufactured by co-extrusion of polyolefin and hot melt adhesive. Designed for bot insulation and sealing protection purpose. Used to protect bundle wires and metal tubes against water and moisture.
Technical Data
|
Property |
Unit |
Standard |
Value |
Test Method |
|
Tensile Strength |
MPa |
≥ 10.4 |
11.0 |
ASTM D 2671 |
|
Elongation |
% |
≥ 300 |
450 |
ASTM D 2671 |
|
Tensile Strength after aging |
MPa |
≥ 7.3 |
8.5 |
UL224 158oC x168hr |
|
Elongation after aging |
% |
≥ 200 |
350 |
UL224 158oC x168hr |
|
Dielectric Strength |
K.V/mm |
≥ 15 |
17.5 |
IEC 60243 |
|
Volume Resistivity |
Ω.cm |
≥ 1 x 1014 |
2.5 x 1014 |
IEC 60093 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
|
Size (mm) |
As Supplied (mm) |
After Recovery |
Packing (m/reel) |
||
|
ID (mm) |
Total Wall Thickness (mm) |
Adhesive Thickness (mm) |
|||
|
3.2 |
3.2 |
1.0 |
0.95 ± 0.15 |
0.45 ± 0.10 |
200 |
|
4.8 |
4.8 |
1.6 |
1.20 ± 0.15 |
0.60 ± 0.10 |
100 |
|
6.4 |
6.4 |
2.2 |
1.35 ± 0.15 |
0.70 ± 0.10 |
100 |
|
7.9 |
7.9 |
2.7 |
1.50 ± 0.15 |
0.75 ± 0.10 |
100 |
|
9.5 |
9.5 |
3.2 |
1.50 ± 0.15 |
0.75 ± 0.10 |
50 |
|
12.7 |
12.7 |
4.2 |
1.80 ± 0.20 |
0.90 ± 0.15 |
1.22 or 25m/reel |
|
15 |
15 |
5.2 |
1.80 ± 0.20 |
0.90 ± 0.15 |
1.22 or 25m/reel |
|
19.1 |
19.1 |
6.3 |
2.00 ± 0.20 |
1.00 ± 0.20 |
1.22 or 25m/reel |
|
25.4 |
25.4 |
8.5 |
2.10 ± 0.25 |
1.05 ± 0.20 |
1.22 or 25m/reel |
|
30 |
30 |
10.2 |
2.20 ± 0.25 |
1.05 ± 0.20 |
1.22 or 25m/reel |
|
38.1 |
38.1 |
13.5 |
2.40 ± 0.25 |
1.15 ± 0.20 |
1.22 or 25m/reel |
