- 3:1 shrink ratio
- Flame retardant
- SBRSW tubing will not split or rupture during installation when overheated
- Resistance to weathering, moisture, contamination and adverse environmental conditions
- High resistance to impact and abrasion
- Thermoplastic adhesive liner for complete environmental protection and insulation
- Continuous operating temperature: -45oC ~ 110oC
- Shrinking temperature: 125oC
- Color: Black

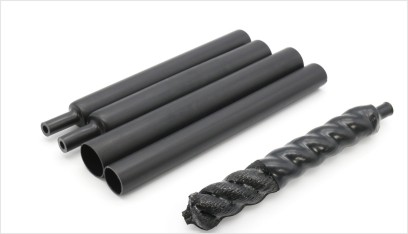

Flame Retardant Adhesive Lined Heavy Wall Cross-linked Polyolefin Heat Shrink Tubing
Code: LIDAVI-SBRSW
Features
Applications
Adhesive-lined heavy wall heat-shrink tubing insulates and protects electrical splices and terminations where maximum flame retardancy and exceptional insulating and sealing characteristics are required.
Technical Data
|
Property |
Unit |
Standard |
Value |
Test Method |
|
Tensile Strength |
MPa |
≥ 14 |
16 |
ASTM D 2671 |
|
Elongation |
% |
≥ 300 |
450 |
ASTM D 2671 |
|
Tensile Strength after aging |
MPa |
≥ 7.3 |
8.5 |
UL224 158oC x168hr |
|
Elongation after aging |
% |
≥ 200 |
350 |
UL224 158oC x168hr |
|
Dielectric Strength |
K.V/mm |
≥ 15 |
17.5 |
IEC 60243 |
|
Volume Resistivity |
Ω.cm |
≥ 1 x 1014 |
2.5 x 1014 |
IEC 60093 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
|
Size (mm) |
Expanded ID Min (mm) |
After Recovery (mm) |
Packing (M/pc) |
|||
|
ID |
Jacket Thickness |
Adhesive Thickness |
Total Wall Thickness |
|||
|
9.0/3.0 |
9.0 |
3.0 |
2.00 ± 0.20 |
0.45 ± 0.10 |
2.45 ± 0.25 |
1.22 |
|
13.0/4.0 |
13.0 |
4.0 |
2.30 ± 0.20 |
0.45 ± 0.10 |
2.75 ± 0.25 |
1.22 |
|
28.0/9.0 |
28.0 |
9.0 |
2.30 ± 0.20 |
0.70 ± 0.10 |
3.00 ± 0.25 |
1.22 |
|
33.0/10.2 |
33.0 |
10.2 |
2.90 ± 0.20 |
0.70 ± 0.10 |
3.60 ± 0.25 |
1.22 |
|
38.1/12.0 |
38.1 |
12.0 |
3.10 ± 0.20 |
0.70 ± 0.15 |
3.80 ± 0.30 |
1.22 |
|
43.2/12.7 |
43.2 |
12.7 |
3.40 ± 0.20 |
0.70 ± 0.20 |
4.10 ± 0.35 |
1.22 |
|
51.0/16.0 |
51.0 |
16.0 |
3.40 ± 0.20 |
0.70 ± 0.20 |
4.10 ± 0.35 |
1.22 |
|
70.0/21.0 |
70.0 |
21.0 |
3.60 ± 0.25 |
0.80 ± 0.20 |
4.40 ± 0.35 |
1.22 |
|
85.0/25.0 |
85.0 |
25.0 |
3.60 ± 0.25 |
0.80 ± 0.20 |
4.40 ± 0.35 |
1.22 |
|
105.0/30.0 |
105.0 |
30.0 |
3.80 ± 0.25 |
0.80 ± 0.20 |
4.60 ± 0.35 |
1.22 |
|
120.0/39.0 |
120.0 |
39.0 |
3.80 ± 0.25 |
0.80 ± 0.20 |
4.60 ± 0.35 |
1.22 |
|
140.0/42.0 |
140.0 |
42.0 |
3.80 ± 0.25 |
0.80 ± 0.20 |
4.60 ± 0.35 |
1.22 |
