- Shrink ratio: 4:1
- Good flexibility, easy to bend
- Good abrasion resistance
- Convenient installation
- Self-extinguish flame retardance
- Continuous operating temperature: -45oC ~ 125oC
- Fusing point temperature: 250oC ± 5oC
- Color: Multi-color

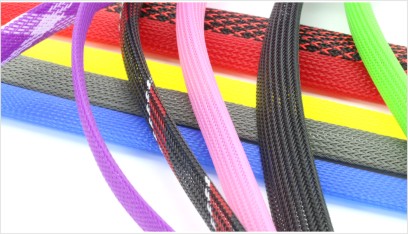

Expandable Sleeve WPET
Code: LIDAVI-WPET
Features
Applications
PET (polyethylene terephthalate) material, excellent application for various bundle wires, wiring harness and hose protection, etc.
Technical Data
|
Property |
Unit |
Illustrated Breakout |
Oil Resistant Breakout |
Test Method |
|
Operating temperature |
oC |
-55oC~100oC |
-55oC~100oC |
ICE216 |
|
Tensile Strength |
MPa |
≥ 13 |
≥12 |
ASTM D 2671 |
|
Elongation |
% |
≥ 300 |
≥300 |
ASTM D 2671 |
|
Tensile Strength after aging |
MPa |
≥ 11 |
≥10 |
120oC x168hr |
|
Elongation after thermal aging |
% |
≥ 230 |
230 |
120oC x168hr |
|
Water Absorption |
% |
≥0.1 |
≥0.1 |
ASTM D 2671 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
|
Code |
Width |
Code |
Width |
|
1 |
Ø3.BLACK.PET(1/0.25x24) |
17 |
Ø10.BLACK.PET(3/0.25x32) |
|
2 |
Ø3.BLACK.PET(1/0.20x32) |
18 |
Ø10.BLACK.PET(3/0.20x40) |
|
3 |
Ø4.BLACK.PET(1/0.25x32) |
19 |
Ø12.BLACK.PET(3/0.25x40) |
|
4 |
Ø4.BLACK.PET(1/0.20x40) |
20 |
Ø12.BLACK.PET(3/0.20x48) |
|
5 |
Ø5.BLACK.PET(1/0.25x40) |
21 |
Ø14- Ø16.BLACK.PET(3/0.25x48) |
|
6 |
Ø5.BLACK.PET(1/0.20x48) |
22 |
Ø14- Ø16.BLACK.PET(3/0.20x56) |
|
7 |
Ø6.BLACK.PET(1/0.25x48) |
23 |
Ø18- Ø20.BLACK.PET(3/0.25x56) |
|
8 |
Ø6.BLACK.PET(1/0.20x56) |
24 |
Ø18- Ø20.BLACK.PET(3/0.20x64) |
|
9 |
Ø6.BLACK.PET(1/0.20x24) |
25 |
Ø22.BLACK.PET(3/0.25x64) |
|
10 |
Ø7.BLACK.PET(1/0.25x56) |
26 |
Ø22.BLACK.PET(3/0.20x72) |
|
11 |
Ø7.BLACK.PET(1/0.20x64) |
27 |
Ø25.BLACK.PET(3/0.25x72) |
|
12 |
Ø8.BLACK.PET(1/0.25x64) |
28 |
Ø25.BLACK.PET(3/0.20x64) |
|
13 |
Ø8.BLACK.PET(1/0.20x72) |
29 |
Ø28.BLACK.PET(3/0.25x64) |
|
14 |
Ø8.BLACK.PET(1/0.25x24) |
30 |
Ø32.BLACK.PET(3/0.25x72) |
|
15 |
Ø8.BLACK.PET(1/0.20x32) |
31 |
Ø36.BLACK.PET(3/0.25x64) |
|
16 |
Ø10.BLACK.PET(1/0.25x72) |
32 |
Ø40.BLACK.PET(3/0.25x72) |
1/ Ø3*BLACK.PET(1***/0.25****x24**)
2/ Remarks:
* : folded diameter of PET sleeve
** : quantity of strands
*** : quantity of string of each strand
**** : diameter of each string
