- 2:1 shrink ratio
- Superior sealing agains water, moiture or other contaminant
- Inner adhesive bonds to plastic, steel, polyethylene
- Out jacket flame retardant
- Continuous oerating temperature: -45oC ~ 125oC
- Shrink temperature: 125oC

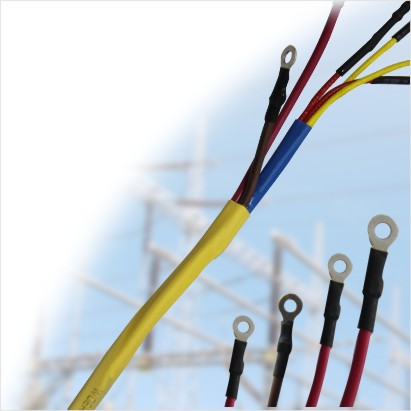

Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing
Code: LIDAVI-SBRS-(2X)G
Features
Applications
Adhesive lined heat shrink tubing with environmental sealing capability for a wide variety of electrical applications, incusing automotive and marine wire harness, wire splices, breakouts and connector to cable transitions
Technical Data
|
Property |
Unit |
Standard |
Value |
Test Method |
|
Tensile Strength |
MPa |
≥ 10.4 |
11.5 |
ASTM D 2671 |
|
Elongation |
% |
≥ 300 |
450 |
ASTM D 2671 |
|
Tensile Strength after aging |
MPa |
≥ 7.3 |
8.5 |
UL224 158oC x168hr |
|
Elongation after aging |
% |
≥ 200 |
350 |
UL224 158oC x168hr |
|
Flammability |
S |
≤ 30 |
≤ 30 |
ASTM D 2671 B |
|
Dielectric Strength |
K.V/mm |
≥ 15 |
17.5 |
IEC 60243 |
|
Volume Resistivity |
Ω.cm |
≥ 1 x 1014 |
2.5 x 1014 |
IEC 60093 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
|
Size (mm) |
As supplied ID (mm) |
After recovery |
Packing (m/reel) |
||
|
ID (mm) |
Total Wall thickness (mm) |
Adhesive thickness (mm) |
|||
|
1.6 |
1.6 |
0.8 |
0.60 ± 0.15 |
0.30 ± 0.1 |
200 |
|
2.4 |
2.4 |
1.2 |
0.70 ± 0.15 |
0.35 ± 0.1 |
200 |
|
3.2 |
3.2 |
1.6 |
0.70 ± 0.15 |
0.35 ± 0.1 |
200 |
|
4.8 |
4.8 |
2.4 |
0.80 ± 0.15 |
0.40 ± 0.1 |
100 |
|
6.4 |
6.4 |
3.2 |
0.80 ± 0.15 |
0.40 ± 0.1 |
100 |
|
7.9 |
7.9 |
3.9 |
0.90 ± 0.15 |
0.45 ± 0.1 |
100 |
|
9.5 |
9.5 |
4.8 |
0.90 ± 0.15 |
0.45 ± 0.1 |
50 |
|
12.7 |
12.7 |
6.4 |
0.95 ± 0.15 |
0.45 ± 0.1 |
1.22 or 25m/reel |
|
15.9 |
15.9 |
7.9 |
0.95 ± 0.15 |
0.45 ± 0.1 |
1.22 or 25m/reel |
|
19.1 |
19.1 |
9.5 |
1.00 ± 0.20 |
0.45 ± 0.1 |
1.22 or 25m/reel |
|
25.4 |
25.4 |
12.7 |
1.10 ± 0.20 |
0.50 ± 0.1 |
1.22 or 25m/reel |
|
31.8 |
31.8 |
15 |
1.15 ± 0.20 |
0.50 ± 0.1 |
1.22 or 25m/reel |
|
38.1 |
38.1 |
19 |
1.25 ± 0.20 |
0.50 ± 0.1 |
1.22 or 25m/reel |
|
44.5 |
44.5 |
22 |
1.35 ± 0.20 |
0.55 ± 0.1 |
1.22 or 25m/reel |
|
50.8 |
50.8 |
25.4 |
1.50 ± 0.25 |
0.60 ± 0.1 |
1.22 or 25m/reel |
