- 3:1&4:1 shrink ratio
- Highly flame retardant
- Superior sealing against water, moisture or other contaminants
- High shrink ratio allows for coverage of irregularly shaped connectors and components
- Superior sealing against water, moisture and other contaminants
- Continuous operating temperature:-45℃-135℃
- Shrink Temperature:125℃
- Meets MIL-DTL-23053/4

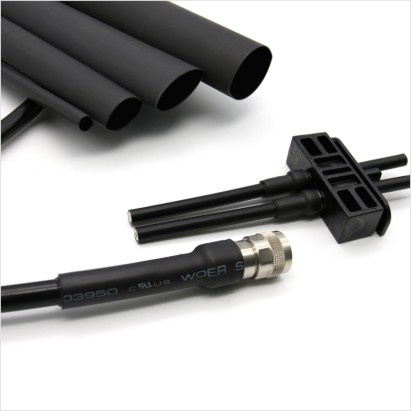

Dual Wall Adhesive Lined Cross -linked Polyolefin tubing
Code: SBRS-(3X, 4X) GF
Features
Applications
Adhesive lined heat shrink tubing ideal for applications where both exceptional flame retardant and environmental sealing capabilities are required.
Technical Data
|
SBRS-(3X,4X)GF Property |
Unit |
Standard |
Value |
Test Method |
|
Tensile Strength |
MPa |
≥ 12 |
12.5 |
ASTM D 2671 |
|
Elongation |
% |
≥ 300 |
450 |
ASTM D 2671 |
|
Tensile Strength after aging |
MPa |
≥ 8.4 |
8.5 |
MIL-DTL23053/4 |
|
Elongation after aging |
% |
≥ 100 |
350 |
MIL-DTL23053/4 |
|
Flammability |
S |
≤ 30 |
≤ 30 |
ASTM D 2671 B |
|
Dielectric Strength |
K.V/mm |
≥ 15 |
17.5 |
IEC 60243 |
|
Volume Resistivity |
Ω.cm |
≥ 1 x 1014 |
2.5 x 1014 |
IEC 60093 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
|
SBRS-(3X)GF Size |
Expanded | After Recovery | Standard Package | |||
|---|---|---|---|---|---|---|
| Inch | mm | Internal Diameter (mm) | Internal Diameter (mm) | Total Wall Thickness (mm) | Adhesive Thickness (mm) | Spool Length M/spool |
| 1/8 | 3.2 | 3.2 | 1.0 | 0.95±0.15 | 0.40±0.10 | 200 |
| 3/16 | 4.8 | 4.8 | 1.6 | 1.10±0.15 | 0.40±0.10 | 100 |
| 1/4 | 6.4 | 6.4 | 2.2 | 1.20±0.15 | 0.45±0.10 | 100 |
| 5/16 | 7.9 | 7.9 | 2.7 | 1.35±0.15 | 0.50±0.10 | 100 |
| 3/8 | 9.5 | 9.5 | 3.2 | 1.45±0.15 | 0.50±0.10 | 50 |
| 1/2 | 12.7 | 12.7 | 4.2 | 1.70±0.20 | 0.50±0.15 | 1.22 OR 25M/Roll |
| 5/8 | 15.0 | 15.0 | 5.2 | 1.80±0.20 | 0.55±0.15 | 1.22 OR 25M/Roll |
| 3/4 | 19.1 | 19.1 | 6.3 | 2.00±0.20 | 0.60±0.20 | 1.22 OR 25M/Roll |
| 1 | 25.4 | 25.4 | 8.5 | 2.10±0.25 | 0.60±0.20 | 1.22 OR 25M/Roll |
| 1-1/4 | 30 | 30 | 10.2 | 2.20±0.25 | 0.65±0.20 | 1.22 OR 25M/Roll |
| 1-1/2 | 39 | 39 | 13.5 | 2.40±0.25 | 0.75±0.20 | 1.22 OR 25M/Roll |
| 2 | 50 | 50 | 17.0 | 2.70±0.25 | 0.80±0.20 | 1.22 OR 25M/Roll |
|
SBRS-(4X)GF Size |
Expanded | After Recovery | Standard Package | |||
|---|---|---|---|---|---|---|
| Inch | mm | Internal Diameter (mm) | Internal Diameter (mm) | Total Wall Thickness (mm) | Adhesive Thickness (mm) | Spool Length M/spool |
| 5/32 | 4.0 | 4.0 | 1.0 | 1.00±0.15 | 0.40±0.15 | 200 |
| 1/4 | 6.0 | 6.0 | 1.5 | 1.10±0. 15 | 0.40±0.15 | 100 |
| 5/16 | 8.0 | 8.0 | 2.0 | 1.50±0.15 | 0.50±0.25 | 50 |
| 1/2 | 12.0 | 12.0 | 3.0 | 1.70±0.15 | 0.60±0.15 | 1.22 OR 25M/Roll |
| 5/8 | 16.0 | 16.0 | 4.0 | 2.00±0.15 | 0.60±0.15 | 1.22 OR 25M/Roll |
| 25/32 | 20.0 | 20.0 | 5.0 | 2.30±0.25 | 0.60±0.15 | 1.22 OR 25M/Roll |
| 1 | 24.0 | 24.0 | 6.0 | 2.60±0.25 | 0.70±0.15 | 1.22 OR 25M/Roll |
| 1-1/4 | 32.0 | 32.0 | 8.0 | 3.00±0.30 | 0.70±0.15 | 1.22 OR 25M/Roll |
| 2 | 52.0 | 52.0 | 13.0 | 3.30±0.30 | 0.70±0.15 | 1.22 OR 25M/Roll |
