The good quality acrylic based adhesive offers very good heat and media resistance and shows and excellent aging stability

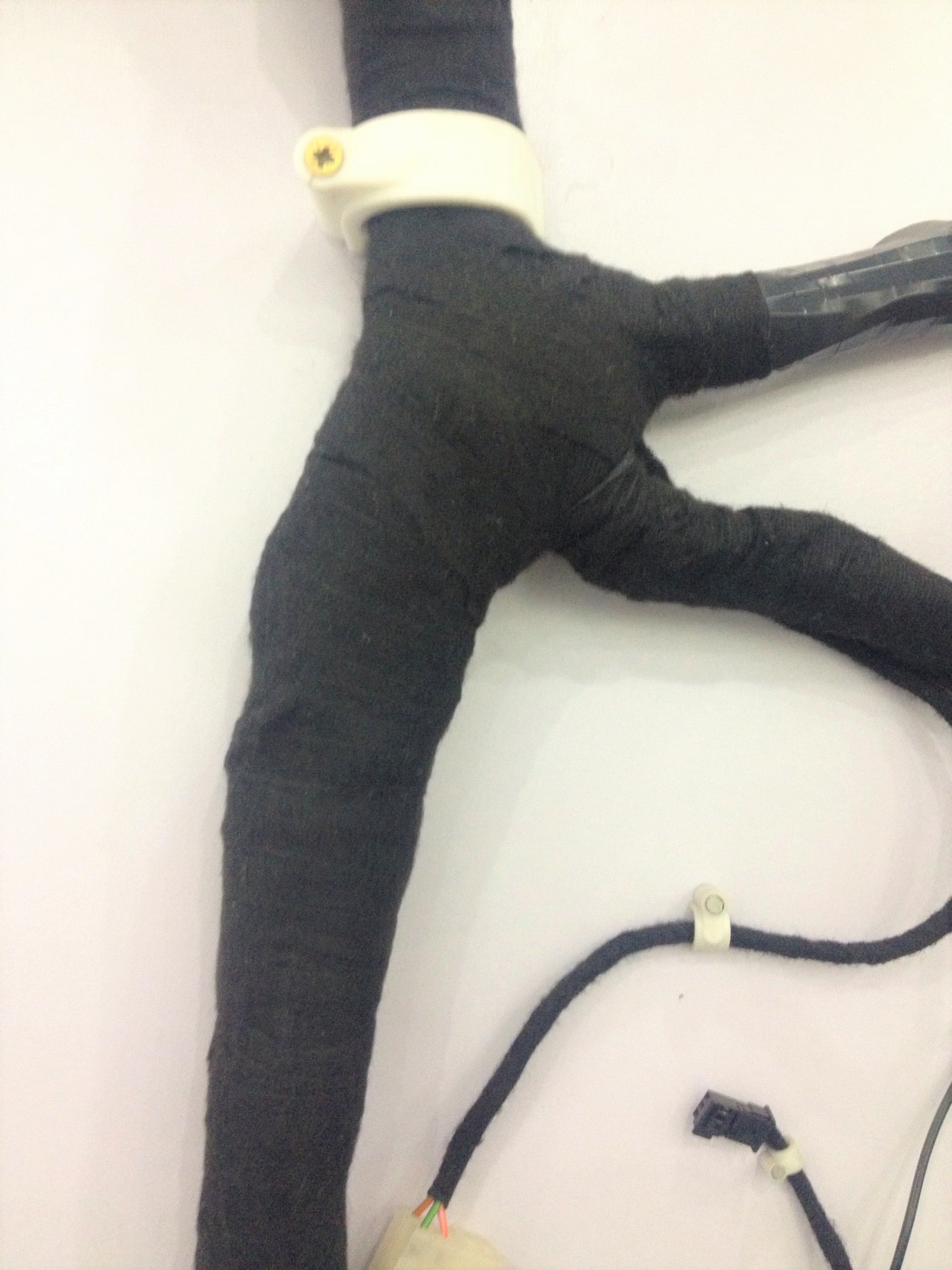

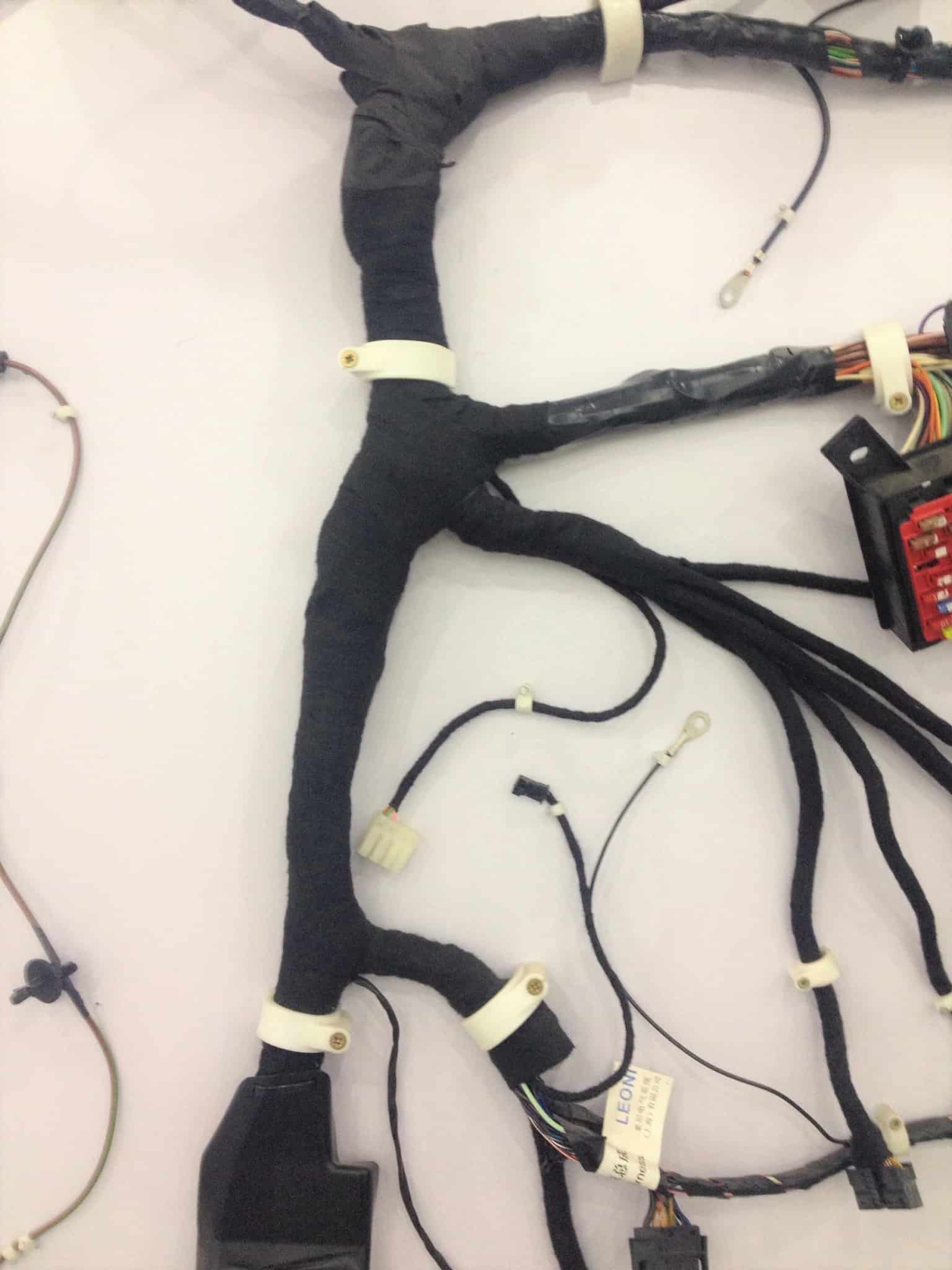

No.9595 is preferably used in wire harness in automotive industry. It is suitable for sophisticated applications and is especially applied wherever high noise reduction and high resistance against abrasion required
|
Content |
Unit |
Standard value |
|
Backing Material |
- |
Polyimide |
|
Adhesive base |
- |
Acrylic |
|
Thickness |
mm |
1.5 |
|
Adhesion Strength to Steel |
N/cm |
1.5 |
|
Tensile Strength |
N/cm |
100 |
|
Elongation |
% |
30 |
|
Unwinding Force |
N/cm |
2 – 5 |
|
Temperature Range |
o C |
-40 ~ 130 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
|
Content |
Unit |
Standard value |
|
Width |
mm |
19, 25 |
|
Length |
m |
4 |
|
Color |
- |
BLACK |
|
Core ID |
mm |
38 |
