- 3:1 shrink ratio
- Resistant to common fluids and solvents
- Superior resistance to weathering, moisture, contamination and adverse environmental conditions
- Standard adhesive liner provides complete environmental protection and insulation
- Heat indicating lines
- Continuous operating temperature: -55oC ~ 110oC
- Shrinking temperature: 120oC
- Color: Black
Adhesive-Lined Insulating Caps
Code: LIDAVI-SBRS-CAPS RL
Features
Applications

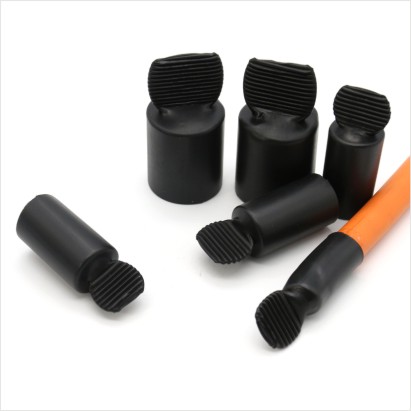

Semi-rigid, adhesive lined, heat-shrink insulating caps specially designed for insulating, sealing and protecting end or stub splices under extreme operating conditions
Typical applications: watertight sealing of cable ends and pipe conduit
Standard rated for 600V/1000V
Technical Data
|
Property |
Unit |
Standard |
Value |
Test Method |
|
Tensile Strength |
MPa |
≥ 14 |
16 |
ASTM D 2671 |
|
Elongation |
% |
≥ 300 |
450 |
ASTM D 2671 |
|
Tensile Strength after aging |
MPa |
≥ 7.3 |
8.5 |
UL224 158oC x168hr |
|
Elongation after aging |
% |
≥ 200 |
350 |
UL224 158oC x168hr |
|
Dielectric Strength |
K.V/mm |
≥ 15 |
17.5 |
IEC 60243 |
|
Volume Resistivity |
Ω.cm |
≥ 1 x 1014 |
2.5 x 1014 |
IEC 60093 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
|
Expanded Length (mm) |
Expanded ID Min (mm) |
Recovered (mm) |
Wall Thickness (mm) |
General Use Diameter (mm) |
Cable Range AWG/MCM |
|
50.8 |
10.2 |
3.8 |
2.0 |
4.5-8.5 |
#8-#1 |
|
63.5 |
19.1 |
5.6 |
2.0 |
6-16.5 |
#2-4/0 |
|
76.2 |
27.9 |
10.2 |
2.4 |
11.5-25 |
2/0-500 |
|
76.2 |
33.0 |
10.2 |
2.4 |
11.5-30 |
300-1000 |
|
88.9 |
38.1 |
12.7 |
2.4 |
14-35 |
500-1500 |
|
88.9 |
43.2 |
12.7 |
2.5 |
14-40 |
650-1750 |
|
88.9 |
52.1 |
19.0 |
2.5 |
21-45 |
900-2500 |
|
101.6 |
69.8 |
25.4 |
2.5 |
30-63 |
2000-2500 |
|
114.3 |
88.9 |
30.0 |
2.5 |
33-83.8 |
== |
|
139.7 |
119.4 |
39.9 |
2.7 |
40.6-114.3 |
== |
