- 4:1 shrink ratio
- Seals and protects against water, corrosive compounds and contaminates
- Adhesive bonds readily to PVC, XLPE and PP-EPDM cable jackets
- Shrinks rapidly for quick installation
- Continuous operating temperature: -45oC ~ 125oC
- Minimum shrinking temperature: 125oC
- Non-flame retardance
- Color: Black
Adhesive-Lined Insulating Caps
Code: LIDAVI-SBRS-CAPS NF
Features
Applications

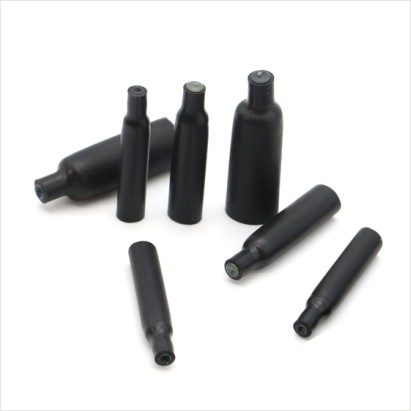

Semi-rigid, adhesive lined, heat-shrink insulating caps specially designed for insulating, sealing and protecting end or stub splices under extreme operating conditions
Technical Data
|
Property |
Unit |
Standard |
Value |
Test Method |
|
Tensile Strength |
MPa |
≥ 14 |
16 |
ASTM D 2671 |
|
Elongation |
% |
≥ 300 |
450 |
ASTM D 2671 |
|
Tensile Strength after aging |
MPa |
≥ 7.3 |
8.5 |
UL224 158oC x168hr |
|
Elongation after aging |
% |
≥ 200 |
350 |
UL224 158oC x168hr |
|
Dielectric Strength |
K.V/mm |
≥ 15 |
17.5 |
IEC 60243 |
|
Volume Resistivity |
Ω.cm |
≥ 1 x 1014 |
2.5 x 1014 |
IEC 60093 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
|
Code |
Size (mm) |
Length |
Expanded |
Recovery (mm) |
||||
|
A |
B |
ID Min (mm) |
ID Max |
Outer layer thickness |
Adhesive Thickness |
Total Wall Thickness |
||
|
CAPS NF-1 |
3.2 |
22 |
12.7 |
3.2 |
0.80 |
0.64 |
0.56 |
1.20 |
|
CAPS NF-2 |
4.8 |
25.4 |
15.2 |
4.8 |
1.30 |
0.76 |
0.76 |
1.52 |
|
CAPS NF-3 |
6.4 |
28.4 |
15.2 |
6.4 |
1.52 |
1.00 |
0.91 |
1.91 |
|
CAPS NF-4 |
9.5 |
31.8 |
18.3 |
9.5 |
2.00 |
1.08 |
1.00 |
2.08 |
|
CAPS NF-5 |
12.7 |
38.1 |
21.6 |
12.7 |
2.41 |
1.30 |
1.24 |
2.54 |
