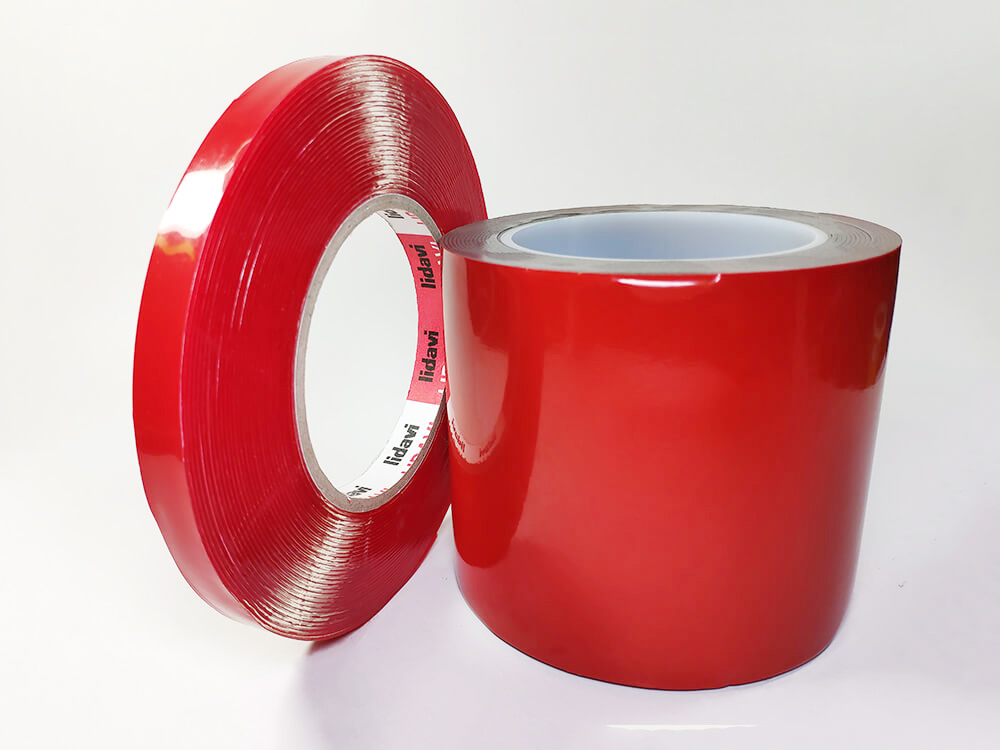

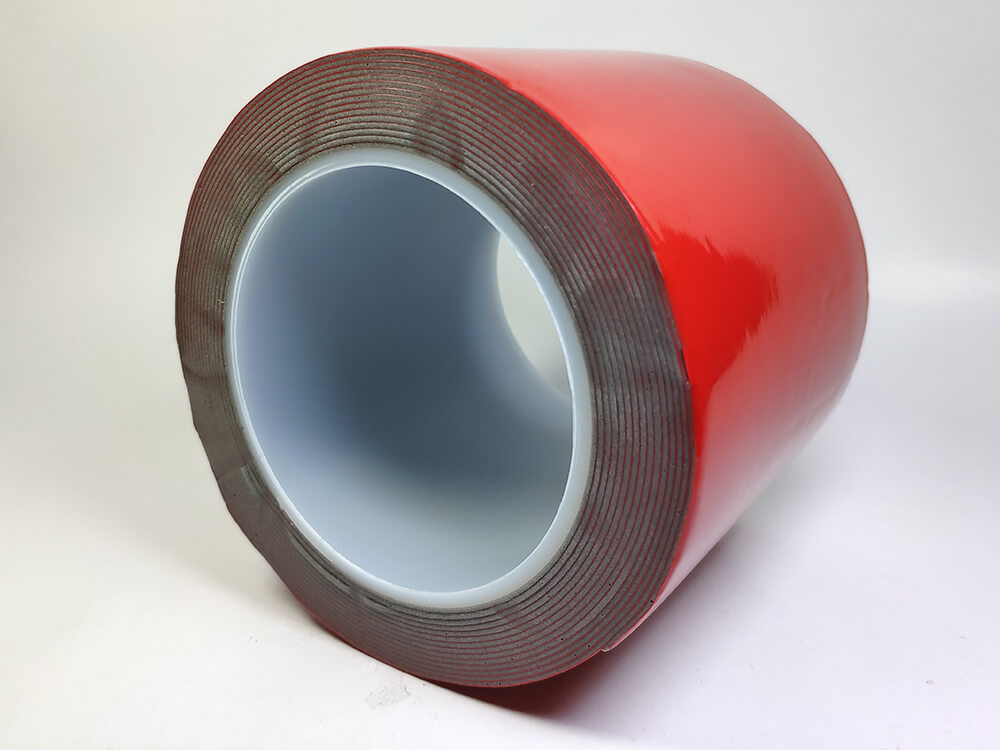

Acrylic Foam Tape-1100TP
Code: VHB-1100TP
Features
Applications
- Bonding advertising panel
- Bonding nameplate, electronic components
- It is good for use in plastic surface, metal or glass surface
Technical Data
| Content | Unit | Standard value |
| Thickness | mm | 1.0 |
| Tensile strength | kgf/cm | 0.35 |
| Elongation | % | 900 |
| Peel adhesion (after 30 minutes) | kgf/25mm | 2.8 |
| Shear adhesion (after 30 minutes) | kgf/cm2 | 5.0 |
| Holding power | mm | 0.5 |
Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy
Other properties
| Content | Unit | Standard value |
| Thickness | mm | 0.25mm, 0.5mm, 0.64mm, 0.8mm, 1.0mm, 1.5mm |
| Width | mm | 2, 3, 4, 5, 6, 10, 12, 19, 24, 48 |
| Length | m | 10, 33 |
| Color | - | Clear, Grey |
| Core ID | mm | 76 |
