Code: VHB-1050TP

Features

Good weather resistance
Good heat resistance
Superior adhesion performance

Applications

Bonding advertising panel
Bonding nameplate, electronic components
It is good for use in plastic surface, metal or glass surface

Technical Data

Content	Unit	Standard value
Thickness	mm	0.5
Tensile strength	kgf/cm	0.35
Elongation	%	900
Peel adhesion (after 30 minutes)	kgf/25mm	2.8
Shear adhesion (after 30 minutes)	kgf/cm²	5.0
Holding power	mm	0.5

Remarks: This data represents average test result and not guaranteed value. Please do not use this value for specification purpose without our consultancy

Other properties

Content	Unit	Standard value
Thickness	mm	0.25mm, 0.5mm, 0.64mm, 0.8mm, 1.0mm, 1.5mm
Width	mm	2, 3, 4, 5, 6, 10, 12, 19, 24, 48
Length	m	10, 33
Color	-	Clear, Grey
Core ID	mm	76

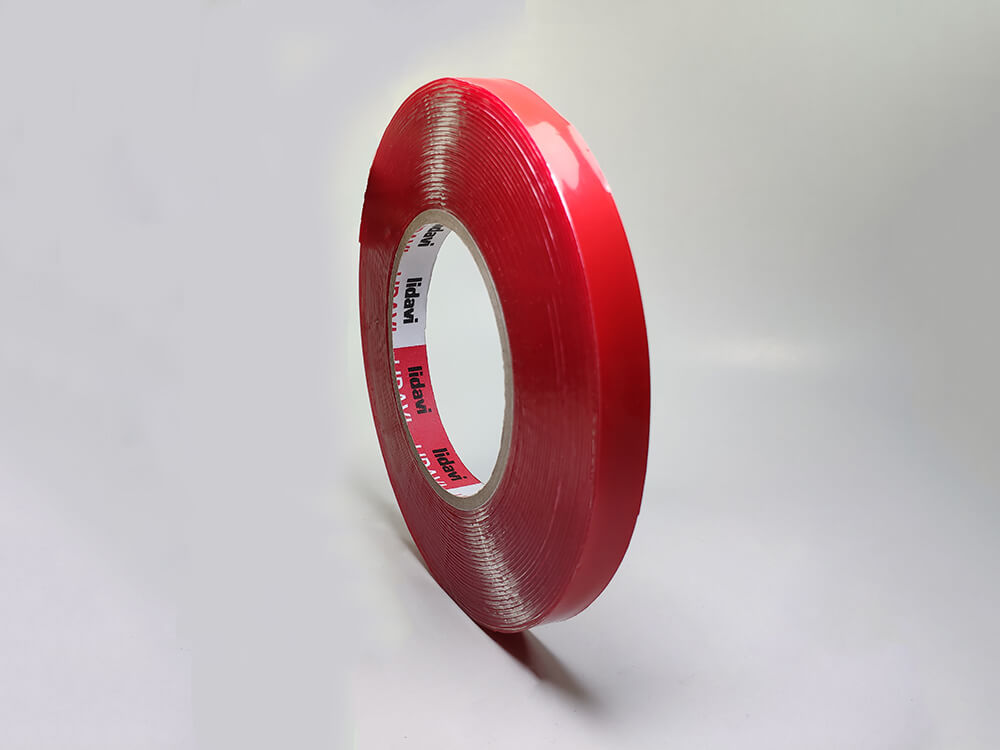

Acrylic Foam Tape - 1050TP
